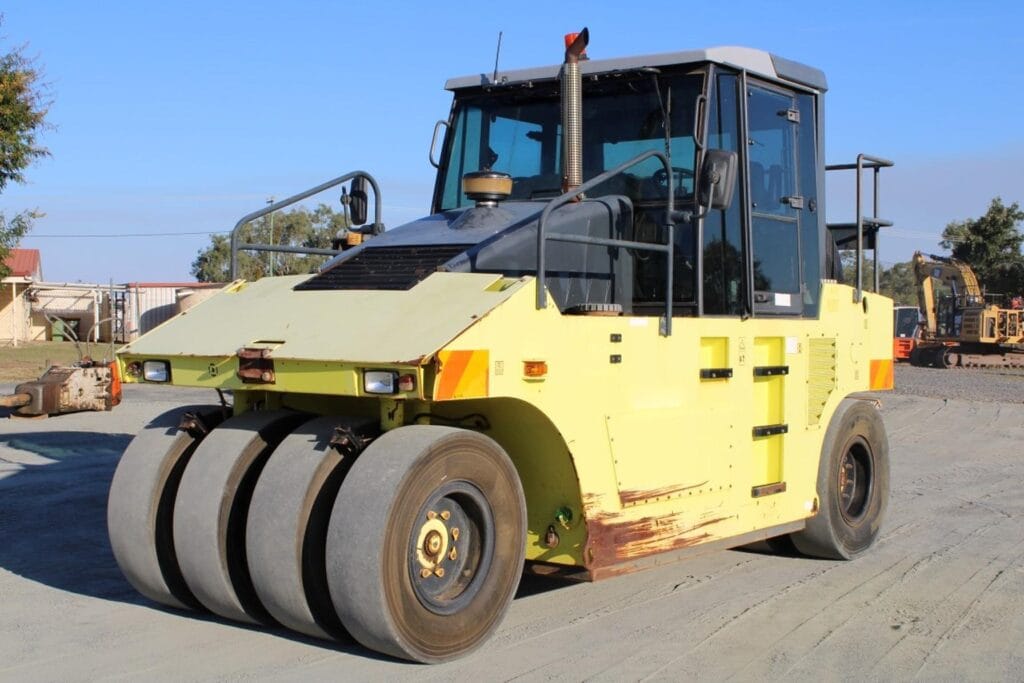

Ammann AP240 Multi Tyre Roller
Information
Additional information
| Make | |
|---|---|
| Model | AP240 |
| Weight | 9.3 t |
Equipment Overview
The Ammann AP240 is a pneumatic tyre roller built for asphalt, soil and municipal road compaction, running 4+4 smooth diagonal tyres across a 1,986 mm rolling width. It has an operating weight of 9,340 kg, ballasting up to 24,000 kg, suited to medium and large jobsites including motorways, airfields and industrial construction.
Power comes from a Cummins BT 4.5-C99 turbo-diesel engine producing 74 kW (99 hp) and 414 Nm of torque at 1,500 rpm, meeting EU Stage II and US EPA Tier 2 emissions. Drive runs through a hydrodynamic system to all four rear wheels, and an air-on-run system lets the operator adjust tyre pressure from the cab. The isostatic front axle oscillates for consistent tyre-to-surface contact across uneven ground.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins BT 4.5-C99, 4-cylinder liquid-cooled diesel |
| Power Output | 74 kW (99 hp) |
| Max Torque | 414 Nm @ 1,500 rpm |
| Emission Standard | EU Stage II / US EPA Tier 2 |
| Transmission | Hydrodynamic |
| Drive Type | Hydrodynamic rear axle drive, 4 driven wheels |
| Operating Weight | 9,340 kg |
| Compaction Width | 1,986 mm |
| Ballast Range | 9,340 – 24,000 kg |
| Tyre Configuration | 4+4, 11×20″ 18PR smooth diagonal |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,775 mm |
| Width | 2,110 mm |
| Height | 3,110 mm |
| Wheelbase | 3,500 mm |
| Turning Radius | 4,670 mm (inner) |
Typical Applications
- Motorway, airfield and municipal road construction
- Asphalt mixture compaction up to 120 mm
- Loam, clay and mixed soil compaction
- Sand and gravel material compaction
- Building and industrial-zone construction
