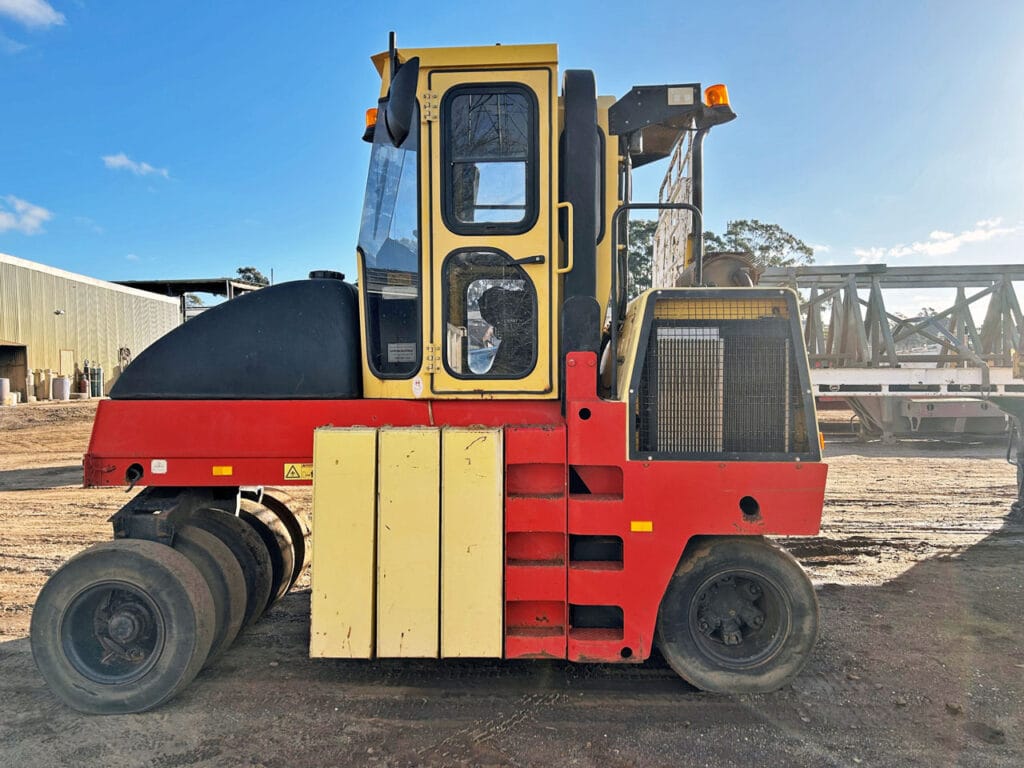

Dynapac CP142 Multi Tyre Roller
Information
Additional information
| Make | |
|---|---|
| Model | CP142 |
| Weight | 6 t |
Equipment Overview
The Dynapac CP142 is a 9-wheel pneumatic tyre roller built for compacting bases, sub-bases and asphalt mixes, with 5 steered oscillating front wheels and 4 rear wheels. It has an operating weight of 6,000 kg (up to 14,000 kg ballasted), suited to a wide range of road and jobsite compaction work.
Power comes from a Cummins B4.5T turbocharged diesel engine producing 99.3 hp (74 kW) at 2,200 rpm. The tyres run at 3° of oscillation for consistent ground contact, and a 500-litre water tank keeps the tyres wetted for asphalt sealing. The machine reaches a top speed of 19 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins B4.5T, turbocharged diesel |
| Power Output | 99.3 hp (74 kW) @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | NA |
| Drive Type | NA |
| Operating Weight | 6,000 kg |
| Compaction Width | NA |
| Ballast Range | 6,000 – 14,000 kg |
| Tyre Configuration | 9-wheel (5 front, 4 rear), 7.50-15 |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,581 mm |
| Width | 1,762 mm |
| Height | 2,990 mm |
| Wheelbase | 2,761 mm |
| Turning Radius | NA |
Typical Applications
- Base and sub-base compaction on road construction sites
- Asphalt mix compaction and sealing
- Municipal road and jobsite work
- General-purpose compaction across mixed material types
