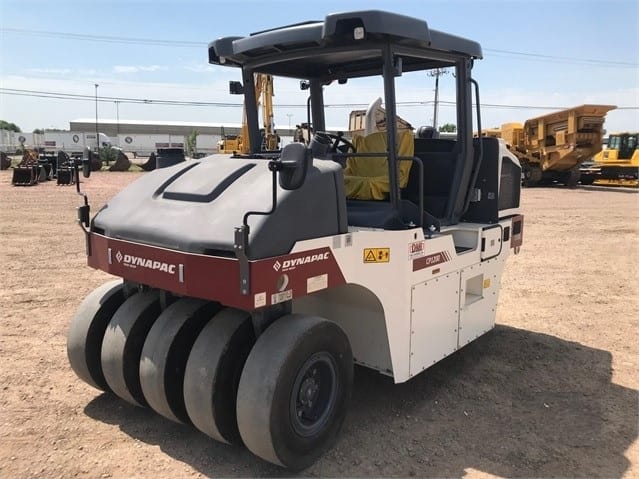

Dynapac CP1200 Multi Tyre Roller
Information
Additional information
| Make | |
|---|---|
| Model | CP1200, CP1200W |
| Weight | 5.8 t |
Equipment Overview
The Dynapac CP1200 is a compact 9-wheel pneumatic tyre roller built for finishing and sealing asphalt surfaces, with a 1,760 mm rolling width across 5 front and 4 rear tyres. It has an operating weight of 5,750 kg (up to 12,000 kg ballasted), suited to urban streets, parking lots and road maintenance work.
Power comes from a Cummins QSF 2.8 turbo-diesel engine producing 73.8 hp (55 kW) at 2,200 rpm, driving the rear tyres hydrostatically through direct drive motors. A modular ballast system with sealed containers gives exact visual control of wheel loads, and the roller reaches a top speed of 18 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSF 2.8, water-cooled turbo-diesel |
| Power Output | 73.8 hp (55 kW) @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Hydrostatic, direct drive motors at rear tyres |
| Operating Weight | 5,750 kg |
| Compaction Width | 1,760 mm |
| Ballast Range | 5,750 – 12,000 kg |
| Tyre Configuration | 9-wheel (5 front, 4 rear) |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,660 mm |
| Width | 2,051 mm |
| Height | 2,950 mm |
| Wheelbase | 2,761 mm |
| Turning Radius | 5,602 mm (outside) |
Typical Applications
- Urban street and city road asphalt finishing
- Parking lot and driveway sealing
- Road maintenance and patching
- Noise-sensitive sites requiring quiet, compact equipment
