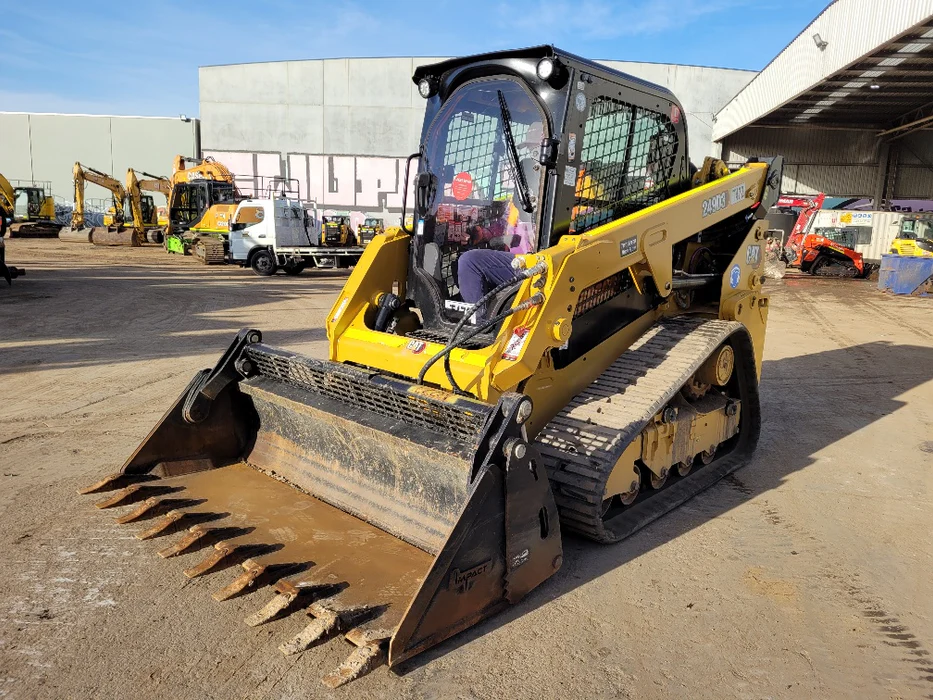

CAT 249D Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | 249D |
| Weight | 3.5 t |
| Capacity | 0.7 t |
| Power | 67.1 hp |
Equipment Overview
The Cat 249D is a compact track loader built for material handling and truck loading work, a vertical-lift model in Caterpillar’s D Series compact track loader range alongside the 239D, 259D, 279D, and 289D. It delivers 50.1 kW (67.1 hp) of gross power and a 730 kg rated operating capacity, suited to jobs needing extended reach and lift height.
Power comes from a Cat C2.2 turbocharged diesel engine meeting U.S. EPA Tier 4 Final and EU Stage IIIB emission standards, driving a suspended, steel-embedded rubber track undercarriage through a hydrostatic transmission. The vertical-lift boom geometry gives extended reach and lift height for material handling or truck loading, and a standard 69 L/min hydraulic circuit (99 L/min with optional High Flow) powers Cat’s full range of work tools.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C2.2, turbo diesel |
| Power Output | 50.1 kW (67.1 hp) gross; 49.1 kW (65.8 hp) net |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 Final; EU Stage IIIB |
| Drive Type | Hydrostatic, suspended track undercarriage |
| Operating Weight | 3,486 kg |
| Rated Operating Capacity (35%) | 730 kg |
| Tipping Load | 2,087 kg |
| Auxiliary Hydraulic Flow | 69 L/min standard (99 L/min High Flow optional) |
| Max Travel Speed | 11.2 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,233 mm (bucket on ground) |
| Width | 1,676 mm (320 mm tracks) |
| Height | 2,039 mm (top of cab) |
| Wheelbase | 1,384 mm (track on ground) |
| Turning Radius | 1,458 mm (from centre, machine rear) |
Typical Applications
- Truck loading and material handling
- Landscaping and general construction
- Attachment-driven site work
- Pallet and stockpile work needing extra lift height
