EquipmentBobcat T590 Posi-Track Loader
Model
T590

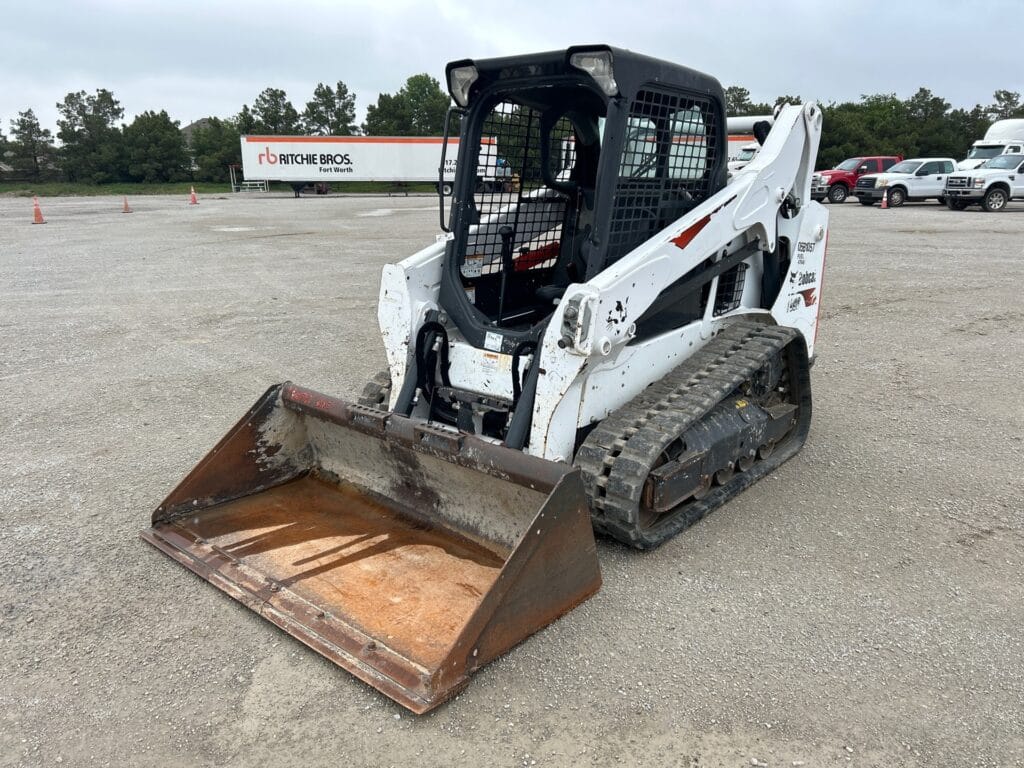

Bobcat T590 Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | T590 |
| Weight | 3.5 t |
| Capacity | 1 t |
| Power | 66 hp |
Equipment Overview
The Bobcat T590 is a compact track loader built for construction and material handling work, positioned in the mid-range of Bobcat’s current compact track loader range. It delivers 66 hp and a 992 kg rated operating capacity, suited to rough or sensitive ground where low ground pressure and strong traction are needed alongside heavy load-carrying capacity.
Power comes from a turbocharged diesel engine driving a vertical lift-path boom for extra reach at full height, with a hydraulic system rated at 64.7 L/min standard flow (up to 101.1 L/min with optional high flow) at 241 bar. A patented dual-path cooling system and pressurised cab keep the machine and operator working through dusty, demanding conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Turbocharged diesel |
| Power Output | 66 hp |
| Max Torque | NA |
| Emission Standard | EPA Interim Tier 4 |
| Drive Type | Skid-steer track drive |
| Operating Weight | 3,513 kg |
| Rated Operating Capacity (35%, ISO) | 992 kg |
| Tipping Load | 2,834 kg |
| Auxiliary Hydraulic Flow | 64.7 L/min (101.1 L/min high flow optional), 241 bar |
| Max Travel Speed | 11.4 km/h (16.7 km/h with optional 2-speed) |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | 1,727 mm (bucket width) |
| Height | 1,972 mm (cab height) |
| Wheelbase | 1,401 mm (track on ground) |
| Turning Radius | NA |
Typical Applications
- General construction and material handling
- Grading and site preparation on soft ground
- Attachment-driven landscaping and demolition work
- Truck loading and backfilling
