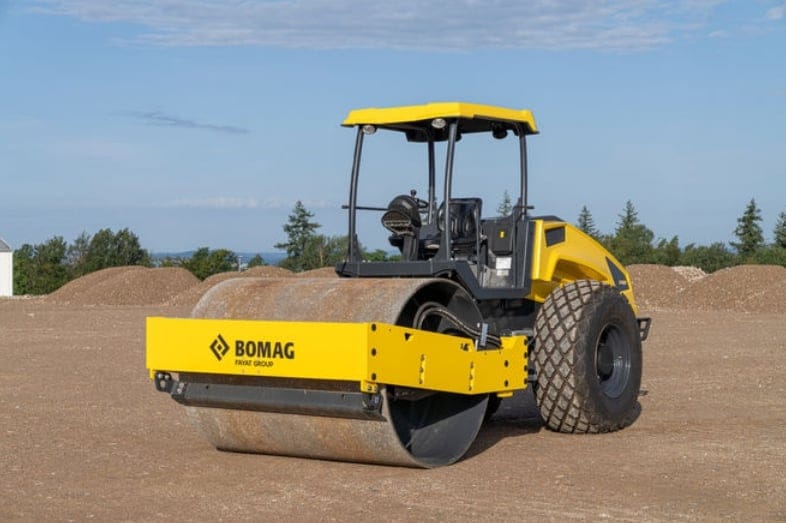

BOMAG BW212D Smooth Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW212D, BW212D-3 |
| Weight | 11 t |
| Class | Vibratory |
Equipment Overview
The BOMAG BW212D is a Smart Line single drum roller with a smooth drum, ideal for compacting sand, gravel, crushed rock and weakly cohesive soils. It has an operating weight of 11,490 kg with a 2,130 mm working width, suited to medium-to-heavy compaction work on large sites in road, dam, earthwork and landfill construction.
Power comes from an engine producing 98.0 kW (131 hp), driving a hydrostatic travel and vibration system with hydrostatic articulated steering. High-torque drives and outstanding gradeability let the roller work ramps with gradients of up to 50%, and a maintenance-free articulated joint reduces downtime. The smooth drum converts to a padfoot drum with an optional easy-to-fit segment sleeve, extending the machine’s range to highly cohesive subsoil.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel |
| Power Output | 98.0 kW (131 hp) |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Hydrostatic articulated steering, self-locking differential |
| Operating Weight | 11,490 kg |
| Drum Width | 2,130 mm |
| Number of Pad Feet | 0 (optional padfoot segment kit) |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Sand, gravel and crushed rock compaction
- Road, dam and earthwork construction
- Landfill construction
- Cohesive soil compaction with the optional padfoot segment kit
