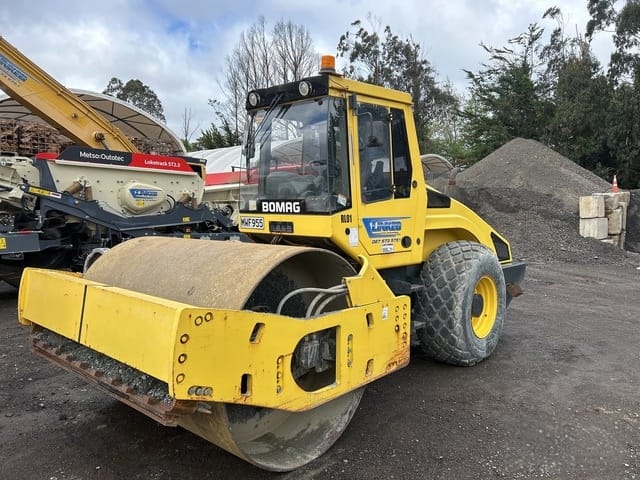

BOMAG BW211D Smooth Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW211D, BW211D-4, BW211PD-5 |
| Weight | 11 t |
| Class | Vibratory |
Equipment Overview
The BOMAG BW211D is a Smart Line single drum roller with a smooth drum, designed for water-bound materials, sand, gravel and sub-bases. It has an operating weight of 10,600 kg with a 2,131 mm drum width, suited to medium-to-heavy compaction work in road, dam and earthwork construction.
Power comes from a Deutz TCD 3.6 L4 engine producing 127.4 hp at 2,000 rpm, meeting US EPA Tier 4 / EU Stage IV emissions. The vibratory system runs at 30 or 34 Hz with up to 240 kN of centrifugal force, and hydrostatic articulated steering with 12° of oscillation keeps the drum in contact with the ground on uneven terrain. The roller carries a 250-litre fuel tank and reaches a top speed of 11 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Deutz TCD 3.6 L4, 4-cylinder liquid-cooled diesel |
| Power Output | 127.4 hp @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 / EU Stage IV |
| Transmission | Hydrostatic |
| Drive Type | Oscillating articulated, hydrostatic steering |
| Operating Weight | 10,600 kg |
| Drum Width | 2,131 mm |
| Exciter Frequency | 30 / 34 Hz |
| Centrifugal Force | Up to 240 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5,870 mm |
| Width | 2,134 mm |
| Height | 2,990 mm |
| Wheelbase | 2,271 mm |
| Turning Radius | NA |
Typical Applications
- Water-bound material, sand and gravel compaction
- Sub-base compaction on road construction sites
- Dam and earthwork construction
- Large-scale road and civil construction projects
