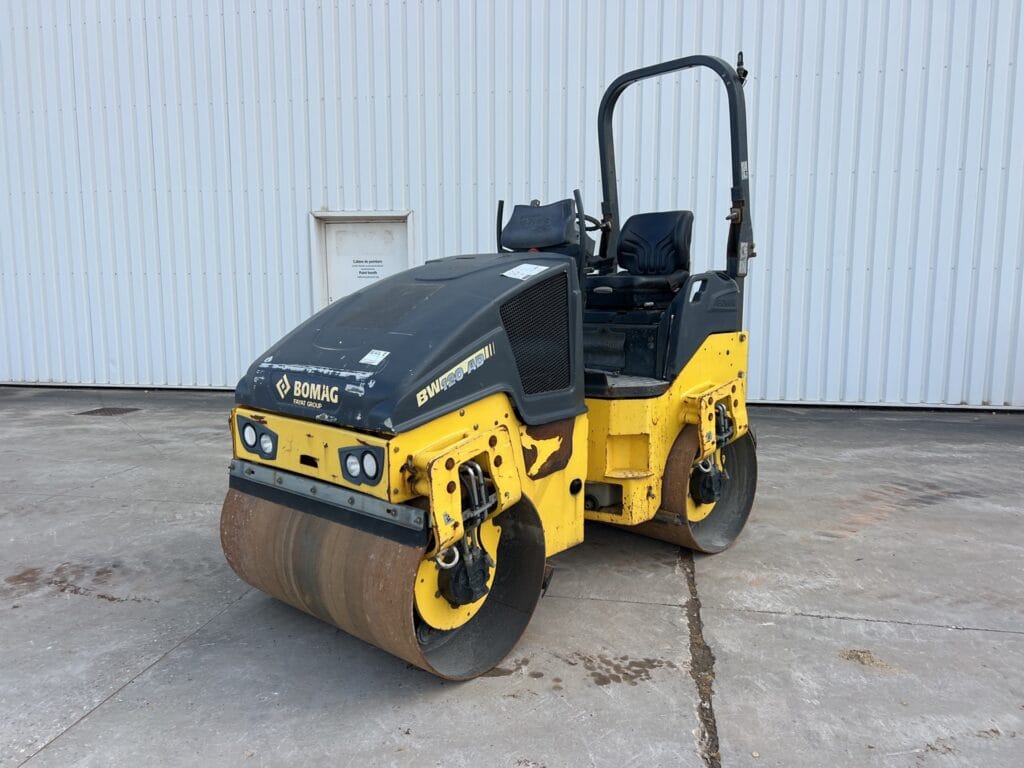

BOMAG BW120 Double Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW120, BW120AD, BW120AD-4, BW120AD-5 |
| Weight | 2.7 t |
Equipment Overview
The BOMAG BW120 is an articulated tandem double drum roller built for asphalt and soil compaction, part of BOMAG’s AD-5 range of tandem rollers under 5 tonnes. It has an operating weight of 2,701 kg and a 1,200 mm drum width, suited to shoulders, small-to-medium parking lots and finishing work on road construction sites.
Power comes from a Kubota D1803 diesel engine producing 33 hp (24.6 kW) at 2,600 rpm. Drive is all-wheel, through an articulated-frame steering joint with an outside turning radius of 2,450 mm, and the front and rear drums vibrate at 63 or 67 Hz with a static linear load of 63 lb/in (11.3 kg/cm) for consistent compaction across passes.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D1803, 3-cylinder water-cooled diesel |
| Power Output | 33 hp (24.6 kW) @ 2,600 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | All-wheel drive, articulated-frame steering |
| Operating Weight | 2,701 kg |
| Compaction Width | 1,200 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,530 mm |
| Width | 1,274 mm |
| Height | 1,811 mm |
| Wheelbase | 1,753 mm |
| Turning Radius | 2,450 mm (outside) |
Typical Applications
- Shoulder and edge compaction on road resurfacing projects
- Small-to-medium parking lot and driveway paving
- Lane widening and addition work
- Finishing passes on medium-sized asphalt jobs
