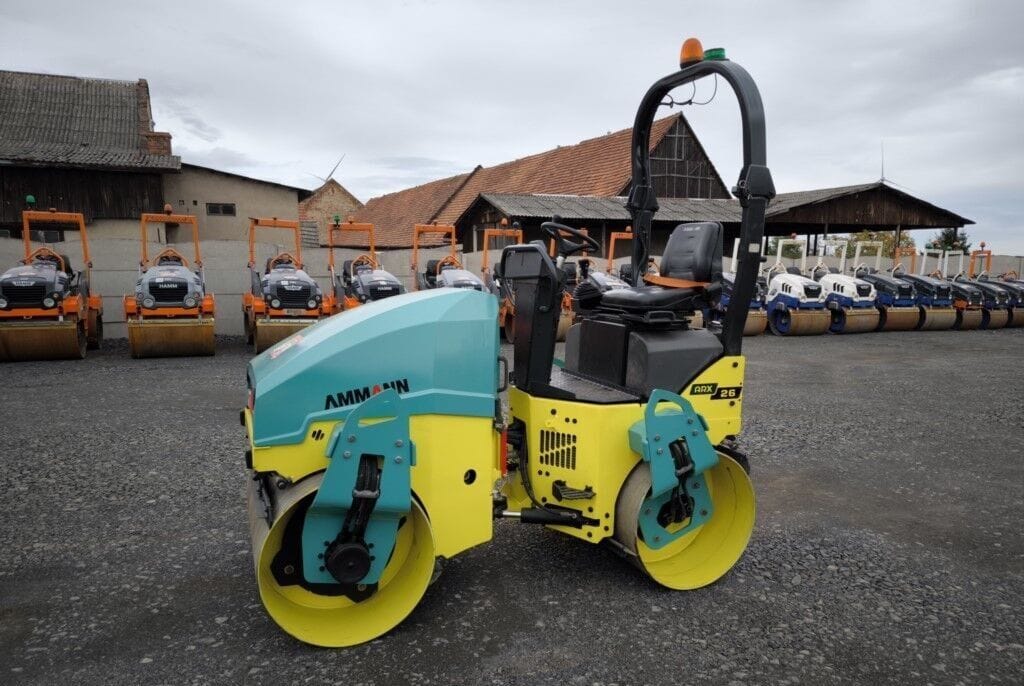

Ammann ARX26 Double Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | ARX26 |
| Weight | 2.5 t |
Equipment Overview
The Ammann ARX26 is a light articulated tandem double drum roller built for asphalt and soil compaction, part of Ammann’s ARX range of light tandem rollers. It has an operating weight of 2,530 kg and a 1,200 mm drum width, suited to shoulders, small-to-medium parking lots and other paving jobs where working around obstructions is common.
Power comes from a Kubota D1803-CR diesel engine producing 33.5 hp (25.0 kW) at 2,100 rpm, meeting US EPA Tier 4 Final emissions. Both drums are driven and vibrate through an adjustable, oscillating articulation joint, with 1 amplitude and 2 selectable frequencies to match the job at hand.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D1803-CR, 3-cylinder diesel |
| Power Output | 33.5 hp (25.0 kW) @ 2,100 rpm |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 Final |
| Transmission | Hydrostatic |
| Drive Type | Front and rear drive and vibration, articulated with oscillation |
| Operating Weight | 2,530 kg |
| Compaction Width | 1,200 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Shoulder and edge compaction on road resurfacing projects
- Small-to-medium parking lot and driveway paving
- Lane widening and addition work
- Compaction around kerbs, drainage and other obstructions
