Ammann AV26-2 Double Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | AV26-2 |
| Weight | 2.5 t |
Equipment Overview

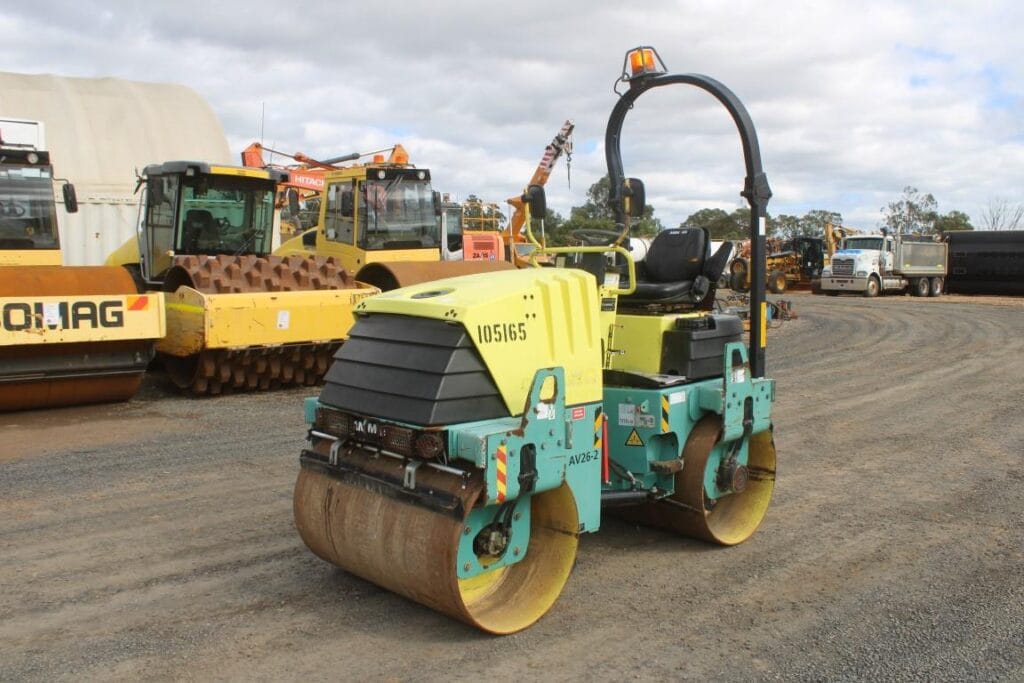

The Ammann AV26-2 is an articulated tandem double drum roller built for asphalt and soil compaction, predating Ammann’s current ARX range. It has a drum width of around 1,200 mm, suited to shoulders, small-to-medium parking lots and other paving jobs.
Power comes from a Yanmar diesel engine producing around 19.8 kW, driving and vibrating both drums through an articulated steering joint. Operating weight and detailed drivetrain specifications are not confirmed for this superseded model and are listed as NA below.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar diesel |
| Power Output | approx. 19.8 kW |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | NA |
| Drive Type | Articulated steering, front and rear drive and vibration |
| Operating Weight | 2,500 kg |
| Compaction Width | approx. 1,200 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | approx. 2,400 mm |
| Width | approx. 1,295 mm |
| Height | approx. 2,620 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Shoulder and edge compaction on road resurfacing projects
- Small-to-medium parking lot and driveway paving
- Lane widening and addition work
- General soil and asphalt compaction on medium sites
