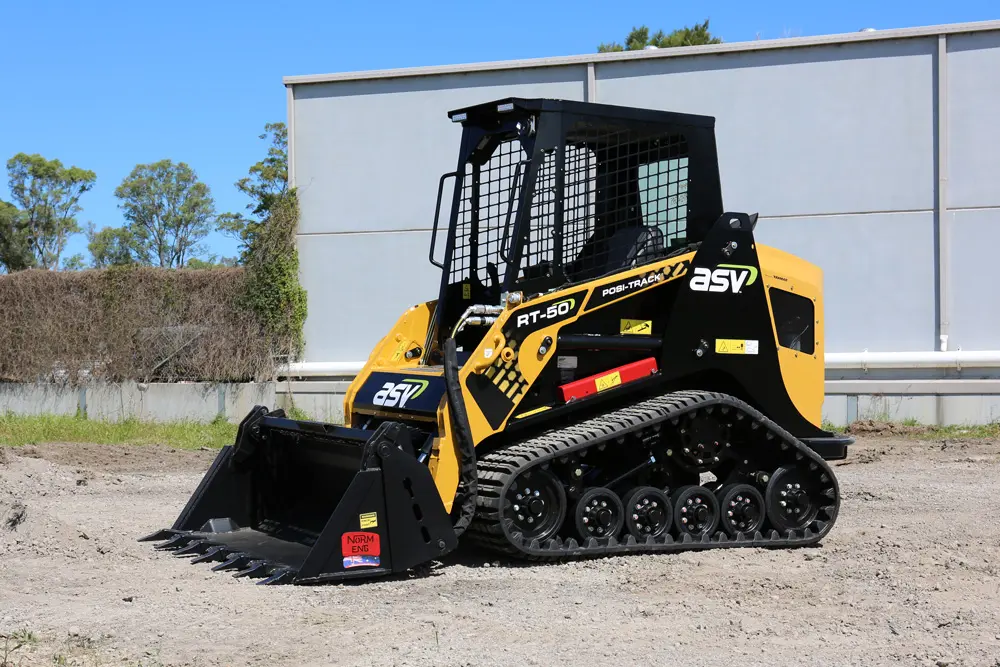

ASV RT50 Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | RT50 |
| Weight | 2.4t |
Equipment Overview
The ASV RT50 is a compact track loader built for landscaping and general construction work, the mid-size model in ASV’s Posi-Track range positioned between the RT40 and RT60. It delivers 49.6 hp (37 kW) from a Yanmar diesel engine and a 635 kg rated operating capacity, suited to contractors and rental customers needing a machine light enough to tow behind a standard ute.
Power comes from a turbocharged Yanmar 3-cylinder diesel engine, driving two hydrostatic direct-drive sprockets through independent torsion-axle suspension undercarriages for a smoother ride on rough ground. The 381 mm-wide rubber Posi-Track undercarriage keeps ground pressure to 21.4 kPa (3.1 psi), and an optional suspension seat and enclosed cab with heat and air conditioning add operator comfort over a full day’s work.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar, 3-cylinder diesel, turbocharged |
| Power Output | 49.6 hp (37 kW) |
| Max Torque | NA |
| Emission Standard | NA |
| Drive Type | Dual hydrostatic direct-drive sprockets, torsion-axle suspension |
| Operating Weight | 2,427 kg |
| Rated Operating Capacity (35%) | 635 kg |
| Tipping Load | 1,814 kg |
| Auxiliary Hydraulic Flow | 50.35 L/min |
| Max Travel Speed | 11.4 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,211 mm (with bucket) |
| Width | 1,486 mm |
| Height | 2,050 mm |
| Wheelbase | 1,450 mm (track on ground) |
| Turning Radius | NA |
Typical Applications
- General construction and site preparation
- Landscaping and material handling
- Rental fleet and contractor use
- Soft-ground work needing low ground pressure
