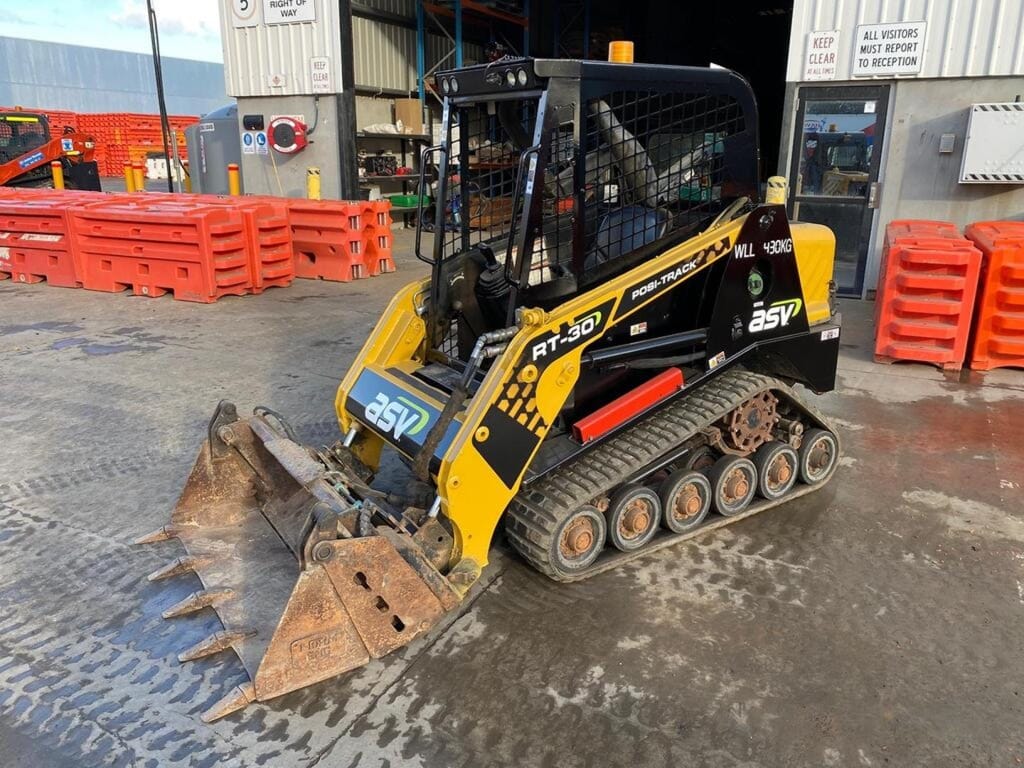

EquipmentASV RT30 Posi-Track Loader
Model
RT30
ASV RT30 Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | RT30 |
| Weight | 1.6 t |
| Capacity | 0.3 t |
| Power | 32.7 hp |
Equipment Overview
The ASV RT30 is a compact track loader built for landscaping and confined-space work, a superseded model in ASV’s Posi-Track range that has been succeeded by the RT40. It delivers 32.7 hp (25.1 kW) from a Perkins diesel engine and a 302 kg rated operating capacity, suited to landscaping and general work in tight spaces.
Power comes from a Perkins 403D-15 naturally aspirated 3-cylinder diesel engine, driving two hydrostatic direct-drive sprockets through ASV’s torsion-axle suspension undercarriage for reduced impact vibration. The rubber Posi-Track undercarriage keeps ground pressure to 20.7 kPa (3.0 psi), and pilot hydraulic joysticks control lift, tilt, and auxiliary hydraulics from a ROPS/FOPS-protected seated cab.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Perkins 403D-15, 3-cylinder diesel, naturally aspirated, 1.5 L |
| Power Output | 32.7 hp (25.1 kW) |
| Max Torque | NA |
| Emission Standard | NA |
| Drive Type | Dual hydrostatic direct-drive sprockets, torsion-axle suspension |
| Operating Weight | 1,633 kg |
| Rated Operating Capacity (35%) | 302 kg |
| Tipping Load | 862 kg |
| Auxiliary Hydraulic Flow | 37.9 L/min |
| Max Travel Speed | 8.5 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,896 mm (with bucket) |
| Width | 1,219 mm |
| Height | 1,842 mm |
| Wheelbase | 1,397 mm (track on ground) |
| Turning Radius | NA |
Typical Applications
- Residential landscaping in confined areas
- Site cleaning and material handling
- Rental fleet and general-purpose use
- Tight-access commercial work
