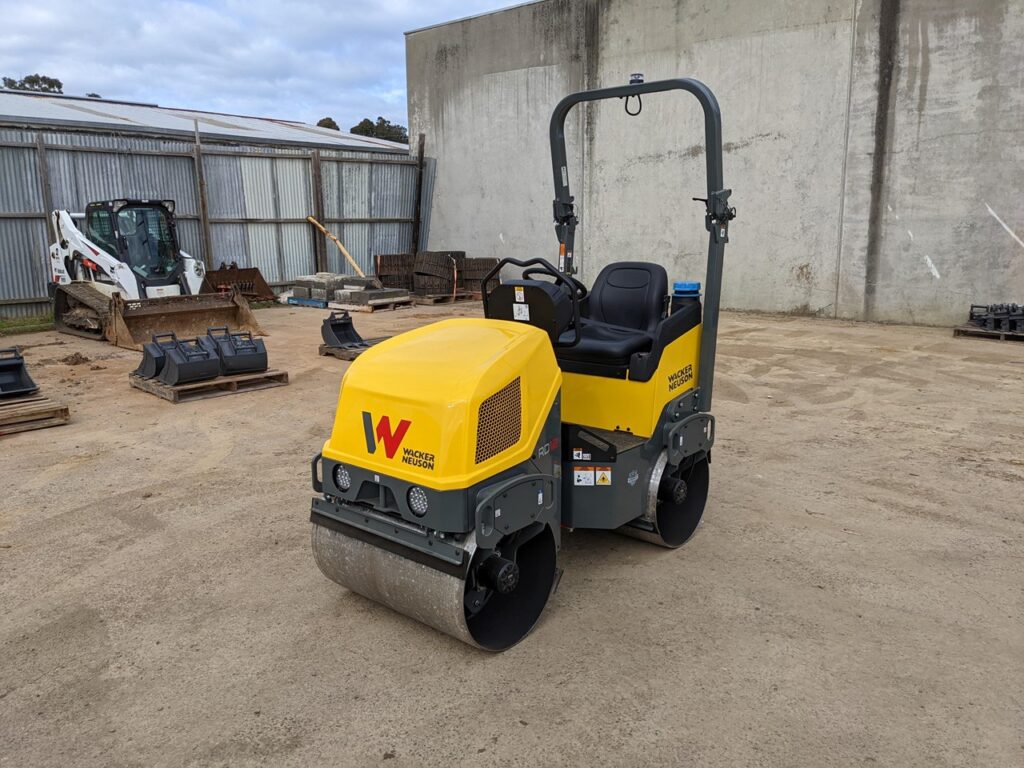

Wacker Neuson RD12 Double Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | RD12, RD12-90, RD12A |
| Weight | 1.3 t |
Equipment Overview
The Wacker Neuson RD12 is a tandem double drum roller with a 900 mm drum width, built for commercial and residential compaction of asphalt and granular subbase material. It has an operating weight of around 1,344 kg, with a front vibrating drum and a static rear drum, suited to parking lots, driveways, secondary roads and repair work.
Power comes from a Honda GX630 petrol engine producing 20.8 hp at 3,600 rpm, driving both drums hydrostatically through an articulated joint. The front drum reaches up to 3,400 lbf of centrifugal force at a frequency of 4,200 vpm, and fully recessed hydraulic motors give the machine close side and kerb clearance for compacting near walls and obstructions. A 35-US-gallon water tank supports extended runtime between refills.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Honda GX630, air-cooled 2-cylinder petrol |
| Power Output | 20.8 hp @ 3,600 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Dual drum drive; front drum vibrates, rear drum static |
| Operating Weight | 1,344 kg |
| Compaction Width | 900 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 1,880 mm |
| Width | 985 mm |
| Height | 2,300 mm |
| Wheelbase | NA |
| Turning Radius | 2,850 mm (outside) |
Typical Applications
- Parking lot, driveway and secondary road compaction
- Repair work and patching
- Nature trail and confined-area compaction
- Turf rolling for landscape and golf course use
