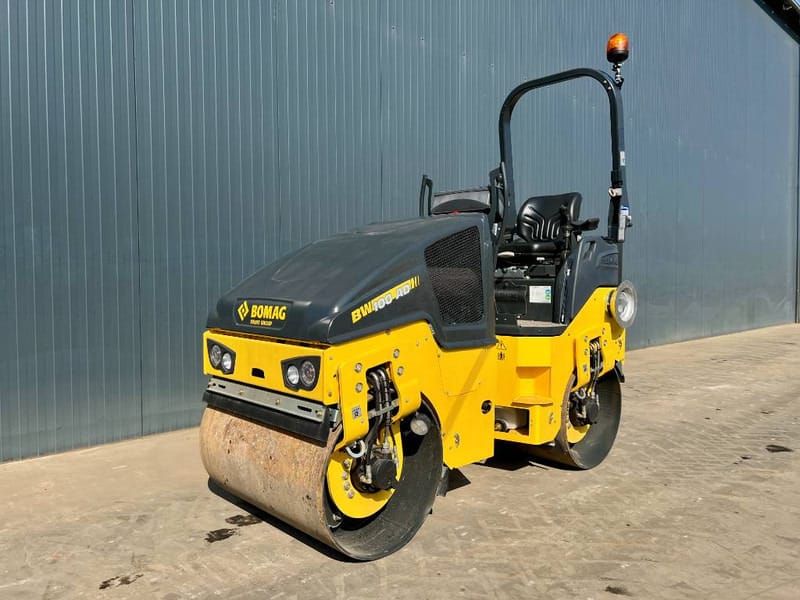

BOMAG BW100 Double Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW100, BW100ADM-5 |
| Weight | 1.6 t |
Equipment Overview
The BOMAG BW100 is an articulated tandem double drum roller built for asphalt and soil compaction, part of BOMAG’s AD-5 range of tandem rollers under 5 tonnes. It has an operating weight of 2,600 kg and a 1,000 mm drum width, suited to footpaths, small parking lots and finishing work on medium-sized road construction sites.
Power comes from a Kubota D1803 DPF diesel engine producing 33 hp (24.6 kW), meeting EU Stage V and US EPA Tier 4 Final emissions. Drive is all-wheel, through an articulated-frame steering joint with an outside turning radius of 2,550 mm, and the double vibration system runs at up to 67 Hz to compact both fine and coarse material.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D1803 DPF, water-cooled diesel |
| Power Output | 33 hp (24.6 kW) |
| Max Torque | NA |
| Emission Standard | EU Stage V / US EPA Tier 4 Final |
| Transmission | Hydrostatic |
| Drive Type | All-wheel drive, articulated-frame steering |
| Operating Weight | 1,600 kg |
| Compaction Width | 1,000 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,530 mm |
| Width | 1,070 mm |
| Height | 1,810 mm |
| Wheelbase | NA |
| Turning Radius | 2,550 mm (outside) |
Typical Applications
- Footpath, driveway and small car park asphalt compaction
- Lane addition and shoulder work on road resurfacing projects
- Patching and municipal repair work
- Finishing passes on medium-sized paving jobs
