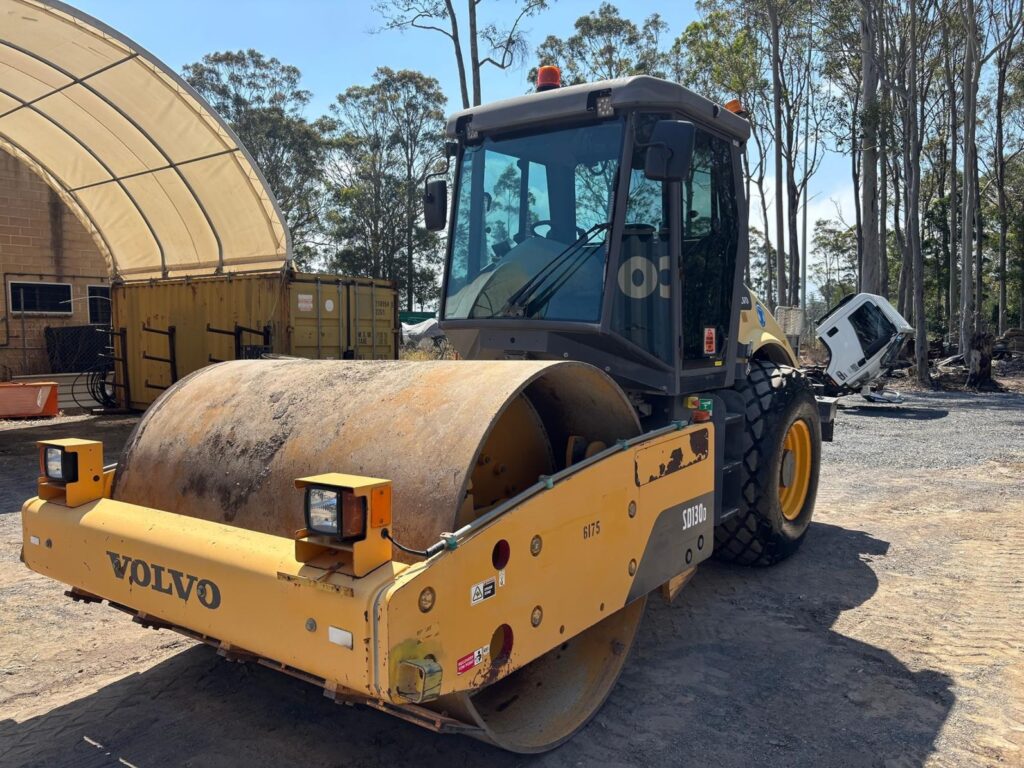

Volvo SD130 Smooth Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | SD130 |
| Weight | 13 t |
Equipment Overview
The Volvo SD130 is a single drum soil compactor with a smooth drum, designed to deliver superior compaction with a 2,134 mm drum width. It has an operating weight of 12,758 kg (with ROPS, cab and inside scraper), suited to road construction and earthworks with a heavy drum weight that helps deliver high density levels in less time.
Power comes from a Cummins QSB4.5 engine rated at 119 kW, driving an articulated frame with ±38° articulation and ±17° oscillation for 65% gradeability. A choice of amplitude and variable frequencies gives up to 281 kN of centrifugal force, and the cab delivers low noise levels and a productive working environment.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSB4.5 |
| Power Output | 119 kW |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | NA |
| Drive Type | Articulated, ±38° articulation / ±17° oscillation |
| Operating Weight | 12,758 kg |
| Drum Width | 2,134 mm |
| Exciter Frequency | 31 / 34 Hz |
| Centrifugal Force | 206 / 281 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Road construction and earthworks
- Base and subbase compaction
- Municipal and civil construction sites
- Sites requiring high gradeability on slopes
