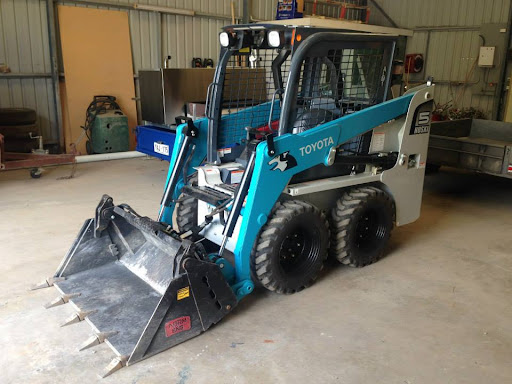

Toyota 5SDK5 Skid Steer Loader
Information
Additional information
| Make | |
|---|---|
| Model | 5SDK5 |
| Weight | 1.7t |
| Capacity | 0.4t |
Equipment Overview
The Toyota 5SDK5 is a skid steer loader from Toyota’s Huski range, tested in Australia to handle tough conditions. It delivers 22 kW (29.5 hp) and a 430 kg SAE operating load, described by Toyota as a quick, powerful machine capable of performing the tasks of bigger machines while staying compact enough to fit in confined spaces.
Power comes from a Toyota 3TNE88 diesel engine, driving two hydrostatic transmissions with infinitely variable speed through two-hand lever steering. The 5SDK5 is built to Toyota Production System quality standards, with a self-levelling system on the lift, a shock-reducing bucket feature, and ROPS/FOPS (ISO) operator protection as standard.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Toyota 3TNE88, 1,642 cc |
| Power Output | 22 kW (29.5 hp) @ 2,400 rpm |
| Max Torque | 106 N·m @ 1,000 rpm |
| Emission Standard | NA |
| Transmission | Hydrostatic, two independent transmissions, infinitely variable speed |
| Drive Type | 4-wheel skid steer |
| Operating Weight | 1,865 kg (with fuel and standard bucket) |
| Rated Operating Capacity (SAE) | 430 kg |
| Tipping Load (SAE) | 860 kg |
| Auxiliary Hydraulic Flow | 50 L/min @ 2,400 rpm |
| Max Travel Speed | 11.0 km/h (forward and reverse) |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | 1,700 mm (clearance circle, with bucket) |
Typical Applications
- General construction and landscaping
- Confined-space material handling
- Attachment-driven property maintenance
- Light-duty digging and loading
