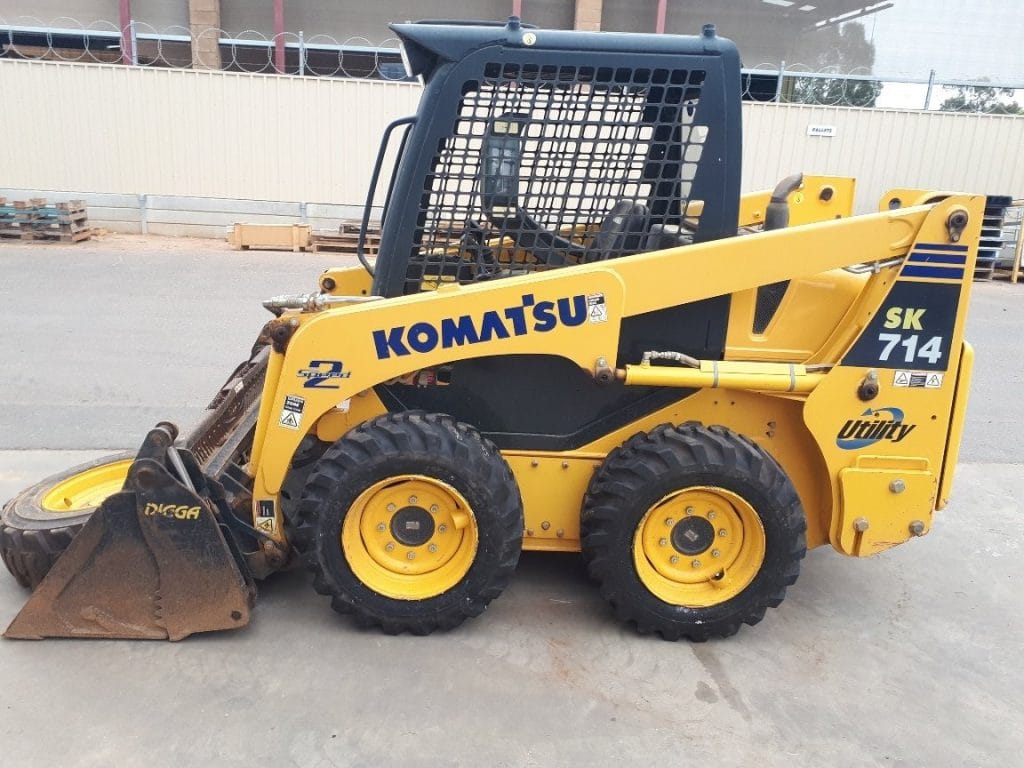

Komatsu SK714 Skid Steer Loader
Information
Additional information
| Make | |
|---|---|
| Model | SK714, SK714-5 |
| Weight | 2.5 t |
| Capacity | 0.7 t |
| Power | 46.8 hp |
Equipment Overview
The Komatsu SK714 is a compact skid steer loader built with big-machine features scaled down to a versatile, jobsite-friendly size, current as the SK714-5. It delivers 46.8 hp and a 650 kg rated operating capacity, suited to general construction and landscaping work where compact dimensions matter.
Power comes from a Komatsu diesel engine at 2,800 rpm, driving a two-speed hydrostatic transmission with shift-on-the-go speed changes. Easy-to-use Proportional Pressure Control joysticks combined with Komatsu’s HydrauMind hydraulic system give smooth, precise control, and an Automatic Power Control device lets the operator use full engine power without risk of stalling, prioritising the work equipment and sending residual power to the travel motors.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu diesel |
| Power Output | 34.9 kW (46.8 hp) @ 2,800 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Two-speed hydrostatic |
| Drive Type | 4-wheel skid steer |
| Operating Weight | 2,530 kg |
| Rated Operating Capacity | 650 kg |
| Breakout/Lifting Force | 1,850 kg (18.1 kN) |
| Auxiliary Hydraulic Flow | NA (standard and Super Flow versions available) |
| Max Travel Speed | 16 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,200 mm |
| Width | 1,550 mm |
| Height | 2,005 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- General construction and landscaping
- Material handling in tight spaces
- Attachment-driven site work
- Load-and-carry applications
