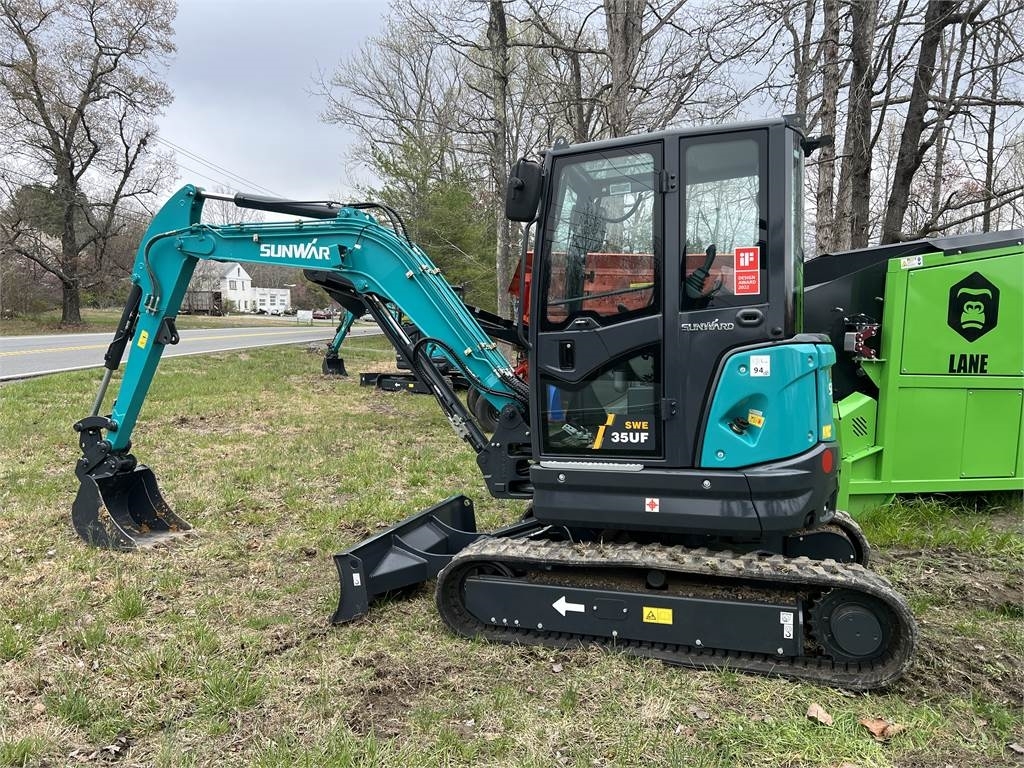

Sunward SWE35UF Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SWE35UF |
| Weight | 3.9 t |
Equipment Overview
The Sunward SWE35UF is a 3.85-tonne mini excavator, the largest in Sunward’s mini excavator range, able to handle bigger projects than its smaller companions while maintaining manoeuvrability and speed. The zero-tail design lets it work confidently in confined spaces, and rear and side covers provide direct access to service points for fuel, oil and air filters, keeping maintenance quick and straightforward. An enclosed ROPS/FOPS cab with air conditioning and heat keeps operators comfortable and productive in all working conditions.
Power comes from a Kubota D1703 engine, a vertical, water-cooled, 4-cycle diesel producing 18.2 kW (24.8 hp) at 2,200 rpm, chosen for its powerful performance, exceptional reliability and long service life. Bucket digging force reaches 31.8 kN and arm digging force up to 22.5 kN, rivalling other 3.5-tonne class excavators on the market, and the boom cylinder design gives a digging reach of over 5.3 m. Key hydraulic components are sourced from top-tier suppliers, including HENGLI for the pump and KYB or Nachi for the travel and swing motors, and the machine comes with up to 5 years of warranty as standard.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D1703 |
| Power Output | 18.2 kW (24.8 hp) @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, variable plunger pump |
| Drive Type | Rubber track, 300 mm shoes |
| Operating Weight | 3,850 kg |
| Digging Depth | 3,120 mm |
| Bucket Capacity | 0.11 m³ |
| Reach | 5,390 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,890 mm |
| Width | 1,700 mm |
| Height | 2,550 mm |
| Track Width | 300 mm |
| Tail Swing Radius | NA |
Typical Applications
- Urban construction and utility installation
- Landscaping and site development
- Small demolition tasks
- General residential excavation
