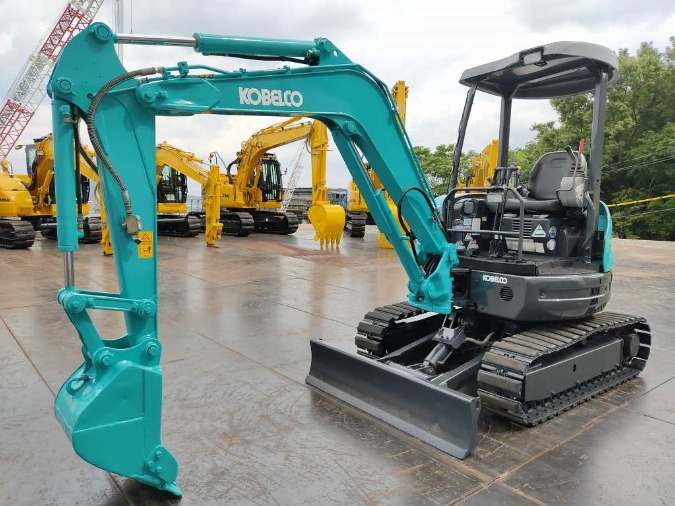

Kobelco SK30SR Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SK30SR |
| Weight | 3.6t |
Equipment Overview
The Kobelco SK30SR is a 3.57-tonne mini excavator designed to balance power and compactness for intensive excavation tasks in confined spaces. A larger boom and arm come as standard equipment, giving a wider working range, and a short tail swing lets operators work in tight spaces. Kobelco’s exclusive iNDr cooling system reduces heat, noise and dust penetration, and the machine comes with standard factory quick hitch piping and a colour LCD screen.
Power comes from a Yanmar 3TNV82A-B engine, a fuel-efficient 3-cylinder direct injection diesel producing 18.1 kW. A multiple pump flow-sharing system provides 38.4 L/min of pump flow at 23.0 MPa, maintaining ample power for any task, and Energy Conservation (‘S’) Mode lowers fuel consumption by up to 25% over previous models. A hydraulic pilot-controlled dozer operation lever adds accuracy and control, and Kobelco’s unique blade design forms earth into an arc that always falls forward, minimising material spilling over the blade.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar 3TNV82A-B, 3-cylinder diesel |
| Power Output | 18.1 kW |
| Max Torque | 79.4 Nm @ 1,440 rpm |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2 variable displacement pumps + 1 gear pump |
| Drive Type | Rubber track, 300 mm shoes |
| Operating Weight | 3,570 kg |
| Digging Depth | 2,800 mm to 3,130 mm |
| Bucket Capacity | 0.12 m³ |
| Reach | 5,200 mm to 5,490 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,730 mm |
| Width | 1,550 mm |
| Height | 2,510 mm |
| Track Width | 300 mm |
| Tail Swing Radius | NA |
Typical Applications
- Residential and confined-space excavation
- Trenching with precise depth control
- Landscaping and utility work
- Material handling in tight spaces
