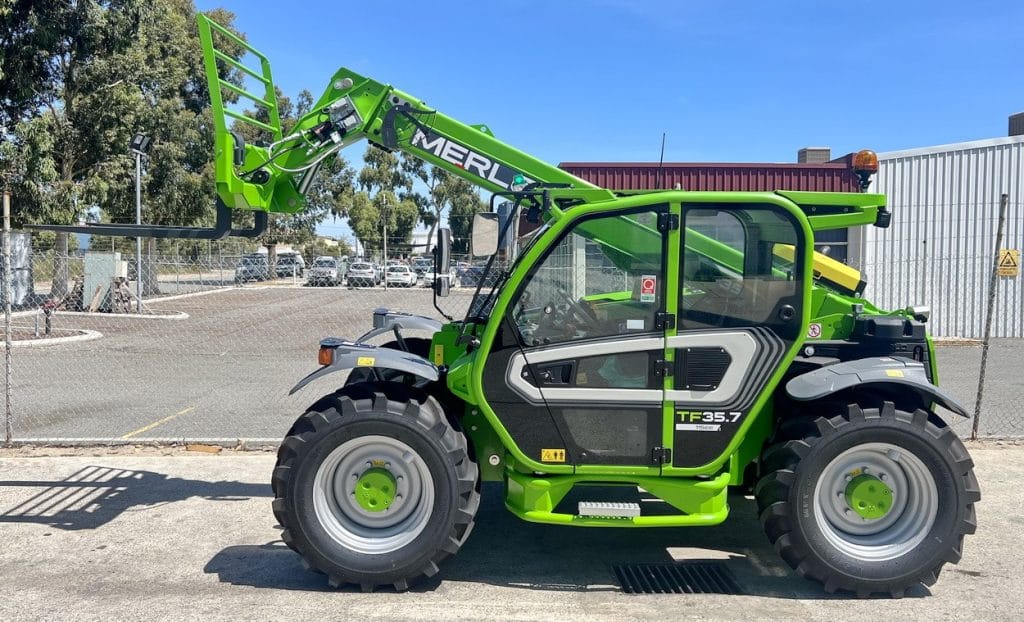

Merlo TF35.7 Telehandler
Information
Additional information
| Make | |
|---|---|
| Model | TF35.7, TF35.7-115 |
| Weight | 6.7 t |
| Capacity | 3.5 t |
Equipment Overview
The Merlo TF35.7 is a diesel telehandler built for industrial and agricultural site work, part of Merlo’s Turbofarmer range. It has a rated capacity of 3,500 kg at a 500 mm load centre and a maximum lift height of 6.6 m, with a maximum forward reach of 3.5 m.
Power comes from a Deutz TCD3.6 four-cylinder diesel engine producing 100 kW, driving a hydrostatic transmission with three steering modes and four-wheel drive for manoeuvrability on uneven ground. The machine reaches a top speed of 40 km/h, and in-house Merlo axles with a differential lock support traction on demanding terrain.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Deutz TCD3.6, 4-cylinder diesel |
| Power Output | 100 kW |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 3 steering modes, 40 km/h |
| Drive Type | 4WD, seated operator, differential lock |
| Operating Weight | 6,650 kg |
| Lift Capacity | 3,500 kg @ 500 mm load centre |
| Max Lift Height | 6.6 m |
| Max Forward Reach | 3.5 m |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4.31 m |
| Width | 2.25 m |
| Height | 2.24 m |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Agricultural material handling (bales, feed, equipment)
- Industrial yard and warehouse loading
- General construction site material handling
- Livestock and farm yard work
