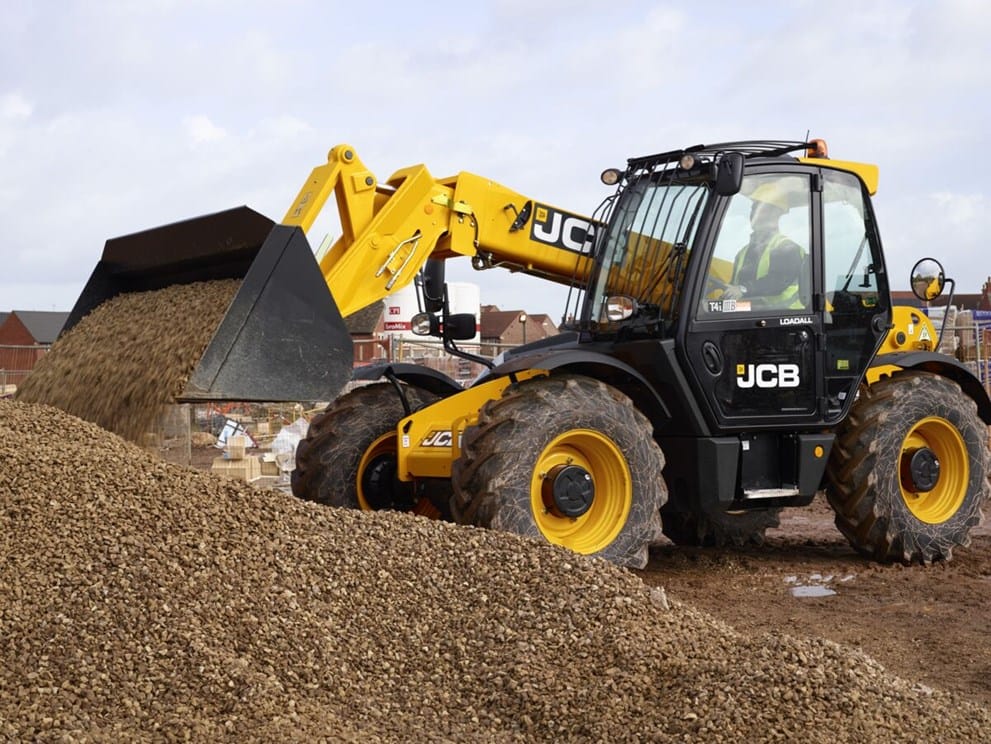

JCB 531-70 Telehandler
Information
Additional information
| Make | |
|---|---|
| Model | 531-70, 531-70CS |
| Weight | 7.1 t |
| Capacity | 3.1 t |
Equipment Overview
The JCB 531-70 is a diesel telehandler built for general construction site work, part of JCB’s Loadall construction range alongside the 541-70 and 535-95. It has a rated capacity of 3,100 kg and a maximum lift height of 7.0 m, with a forward reach of 3.7 m for productive load placement.
Power comes from JCB’s EcoMAX 4.4-litre four-cylinder diesel engine producing 55 kW (75 hp) at 2,200 rpm and 400 N·m of torque at 1,300 rpm as standard, with 81 kW and 93 kW options available. Drive runs through a torque converter and 4-speed powershift transmission reaching 29 or 33 km/h, with a combination of individual hydraulic wheel motors and four-wheel steer for manoeuvrability in tight spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | JCB EcoMAX 4.4L 4-cylinder turbocharged diesel |
| Power Output | 55 kW (75 hp) @ 2,200 rpm standard (81 kW or 93 kW options) |
| Max Torque | 400 N·m @ 1,300 rpm (standard engine) |
| Emission Standard | Stage V (T4 Final) |
| Transmission | Torque converter, 4-speed powershift, 29/33 km/h |
| Drive Type | 4WD, individual hydraulic wheel motors, four-wheel steer |
| Operating Weight | 7,060 kg |
| Lift Capacity | 3,100 kg |
| Max Lift Height | 7.0 m |
| Max Forward Reach | 3.7 m |
Dimensions
| Dimension | Value |
|---|---|
| Length (to front carriage) | 4.99 m |
| Width | 2.23 m |
| Height | 2.49 m |
| Wheelbase | 2.75 m |
| Turning Radius | 3.7 m |
Typical Applications
- General construction site material handling
- Building-materials and pallet handling at height
- Loading and unloading delivery vehicles on site
- Placing materials on scaffolding or upper levels
