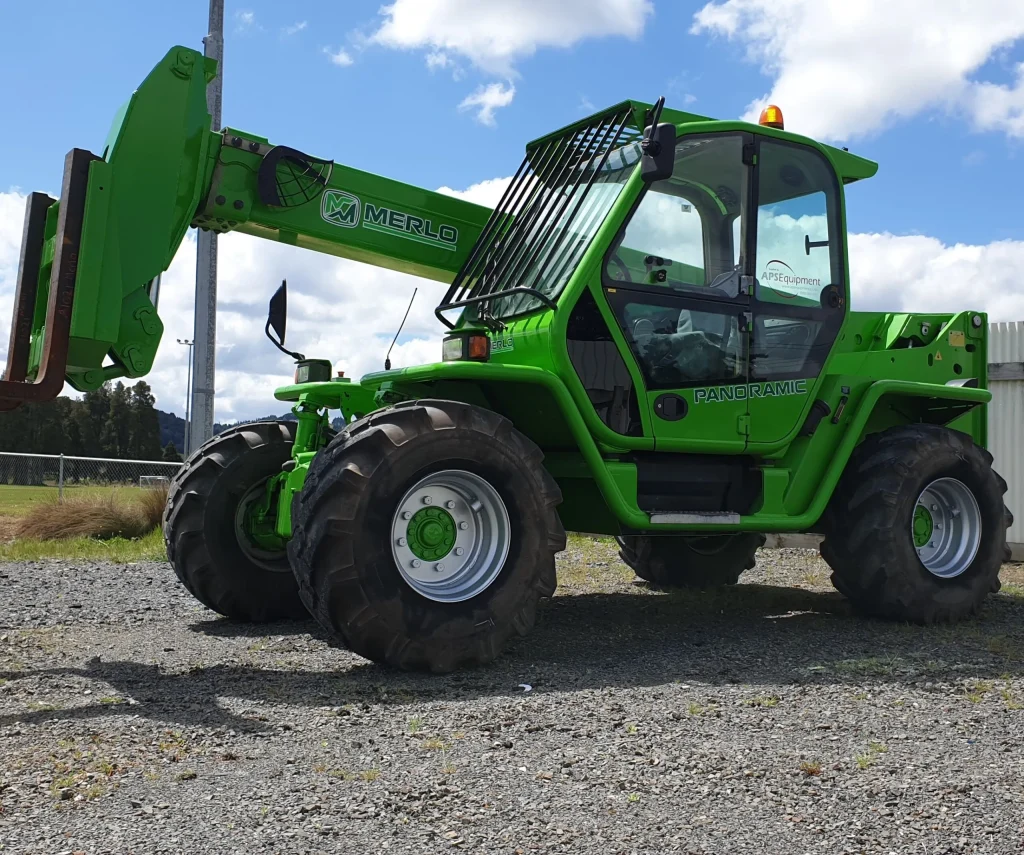

Merlo P72.10 Telehandler
Information
Additional information
| Make | |
|---|---|
| Model | P72.10 |
| Weight | 11 t |
| Capacity | 7.2 t |
Equipment Overview
The Merlo P72.10 is a diesel telehandler built for heavy construction and industrial material handling, part of Merlo’s Panoramic range. It has a rated capacity of 7,200 kg at a 600 mm load centre and a maximum lift height of 9.55 m, suited to oversized and heavy construction-materials handling.
Power comes from a Deutz six-cylinder turbocharged diesel engine producing 150 kW at 2,300 rpm, with a 6.1-litre displacement meeting Tier IIIA emissions standards, driving a hydrostatic transmission with four-wheel drive and three steering modes. The machine reaches a top speed of 40 km/h, giving it strong road-transfer speed alongside its heavy-lift capability.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Deutz 6-cylinder turbocharged diesel, intercooled common rail, 6.1L |
| Power Output | 150 kW @ 2,300 rpm |
| Max Torque | NA |
| Emission Standard | Tier IIIA |
| Transmission | Hydrostatic, 3 steering modes, 40 km/h |
| Drive Type | 4WD, seated operator |
| Operating Weight | 10,500 kg |
| Lift Capacity | 7,200 kg @ 600 mm load centre |
| Max Lift Height | 9.55 m |
| Max Forward Reach | 5.3 m |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5.35 m |
| Width | 2.33 m |
| Height | 2.44 m |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Heavy construction-materials handling
- Industrial site freight and equipment handling
- Oversized load placement on construction sites
- Precast and structural component handling
