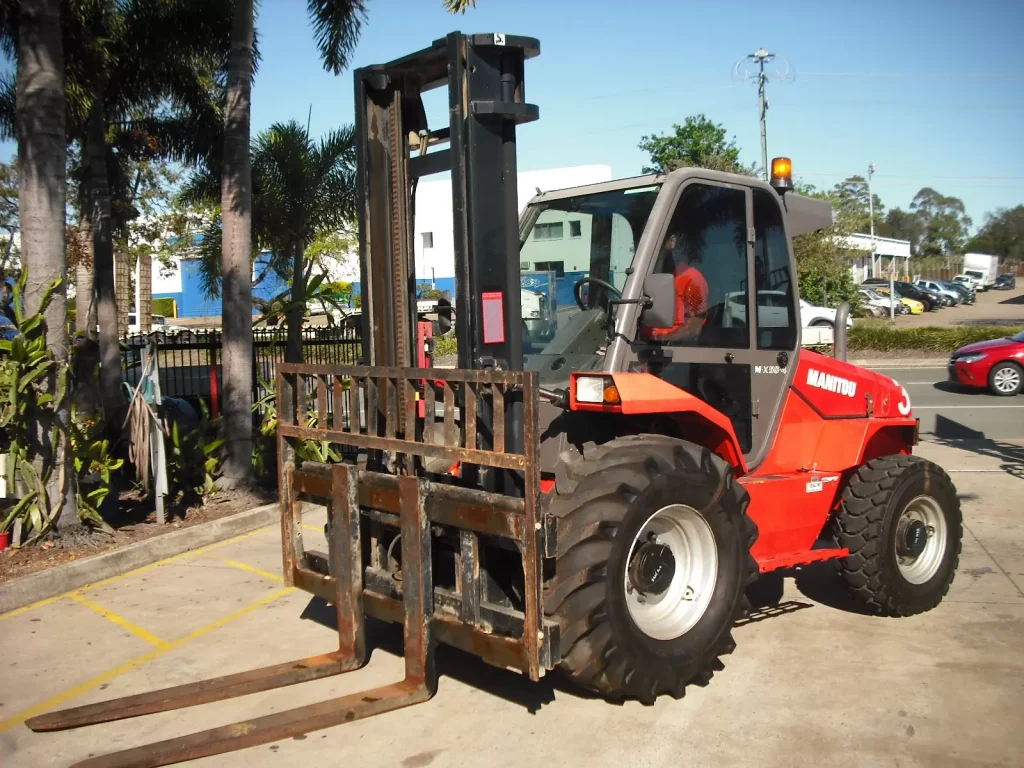

Manitou M-X 50 Rough Terrain Forklift
Information
Additional information
| Make | |
|---|---|
| Model | M-X 50, M-X 50-4 |
| Weight | 7.7 t |
| Capacity | 5 t |
Equipment Overview
The Manitou M-X 50 is a diesel 4WD rough terrain forklift built for difficult terrain and obstacles, part of Manitou’s M-X range. It has a rated capacity of 5,000 kg and a duplex mast lifting to 3.7 m, suited to sawmills, construction, mining and container-handling sites.
Power comes from a Perkins 3A four-cylinder diesel engine producing 70 kW, driving all four wheels through a hydraulic transmission that reaches 24 km/h laden. A ground clearance of 430 mm and a choice of tyre types help the truck maintain traction across degraded, muddy or uneven ground, and the suspended cab is accessible from both sides for a spacious, ergonomic driving position.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Perkins 3A, 4-cylinder diesel, 4,400 cc |
| Power Output | 70 kW |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | NA |
| Drive Type | 4×4, seated operator |
| Operating Weight | 7,660 kg |
| Lift Capacity | 5,000 kg @ 500 mm load centre |
| Mast | Duplex, 3,700 mm lift height, 2,500 mm lowered (options to 6,060 mm lift height on triplex free-lift masts) |
| Fork Carriage | Forks 1,200 x 150 x 60 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length (to fork heel) | 3,750 mm |
| Width | 2,100 mm |
| Height | NA |
| Wheelbase | 2,120 mm |
| Turning Radius | 4,160 mm |
Typical Applications
- Sawmill and timber handling
- Construction site material handling
- Mining and quarry operations
- Container handling and auto-recycling yards
