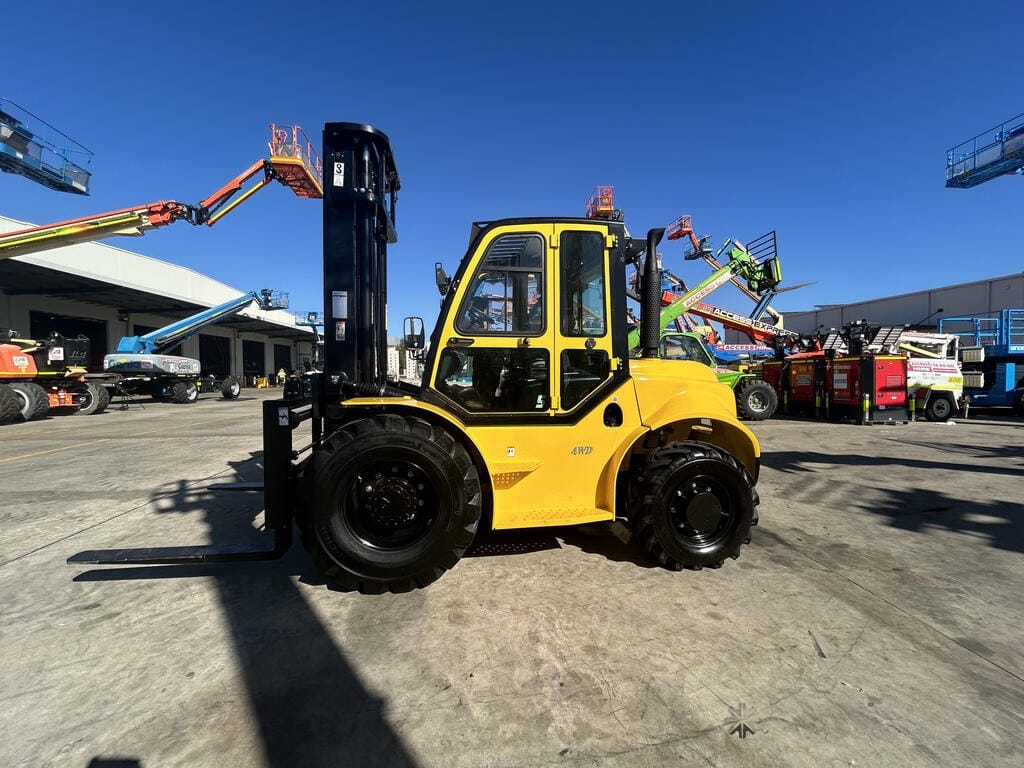

Liftsmart LS-RT50 Rough Terrain Forklift
Information
Additional information
| Make | |
|---|---|
| Model | LS-RT50, LS-RT50-4 |
| Weight | 6.3 t |
| Capacity | 5 t |
Equipment Overview
The Liftsmart LS-RT50 is a diesel rough terrain forklift built for demanding outdoor sites, available in 2WD and 4WD configurations. It has a rated capacity of 5,000 kg at a 600 mm load centre and a maximum lift height of 6.0 m, suited to quarries, timber markets and construction sites.
Power comes from a Cummins QSF3.8T diesel engine, driving through a hydrodynamic transmission with three forward gears that reaches a top speed of 25 km/h. A manual differential lock and full-floating hydraulic drive gearbox let the operator switch between 2WD and 4WD, and a suspension-integrated overhead guard together with a full-floating transmission and suspension seat reduce vibration and noise for the operator.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Cummins QSF3.8T 3TC115 turbocharged 4-cylinder diesel |
| Power Output | 86 kW @ 2,200 rpm |
| Max Torque | 470 N·m @ 1,100-1,700 rpm |
| Emission Standard | NA |
| Transmission | Hydrodynamic, 3 forward gears, 2WD/4WD selectable |
| Drive Type | 2WD or 4WD available, seated operator |
| Operating Weight | 6,300 kg |
| Lift Capacity | 5,000 kg @ 600 mm load centre |
| Mast | Maximum lift height 6.0 m |
| Fork Carriage | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Quarry and mining site material handling
- Timber market and mill operations
- Construction site freight handling on rough or wet ground
- General outdoor yard operations in demanding conditions
