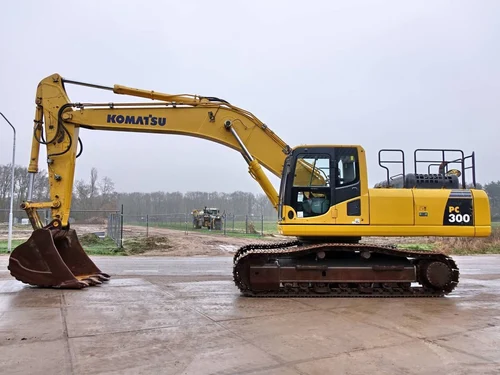

Komatsu PC300LC Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | PC300LC, PC300LC-8 |
| Weight | 32 t |
Equipment Overview
The Komatsu PC300LC is a 31.6 to 32.6-tonne excavator built for high-production mid-size work, with a large drawbar pull and digging force that put it a step above smaller excavators while remaining easier to transport and operate than full-size rigs. High rigidity work equipment and a ROPS cab with high shock-absorption performance are built to handle sustained, demanding site conditions. Bucket capacity runs from 0.52 to 1.80 m³ depending on the attachment.
Power comes from a Komatsu SAA6D114E-3 engine, a turbocharged, aftercooled diesel producing 194 kW gross (187 kW net) at 1,950 rpm, meeting EPA Tier 3 and EU Stage 3A emissions standards with a 40% reduction in NOx emissions through electronically controlled high-pressure common rail fuel injection. A one-touch Power Max function increases digging force for 8.5 seconds of extra punch when needed, and two established work modes let the operator balance power against fuel economy.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu SAA6D114E-3 |
| Power Output | 194 kW gross / 187 kW net @ 1,950 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 3 / EU Stage 3A |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track |
| Operating Weight | 31,600 kg to 32,580 kg |
| Digging Depth | 6,540 mm |
| Bucket Capacity | 0.52 m³ to 1.80 m³ |
| Reach | 10,250 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Track Width | NA |
| Tail Swing Radius | NA |
Typical Applications
- High-production general excavation
- Mass excavation and quarry work
- Truck loading and material handling
- Deep trenching and foundation work
