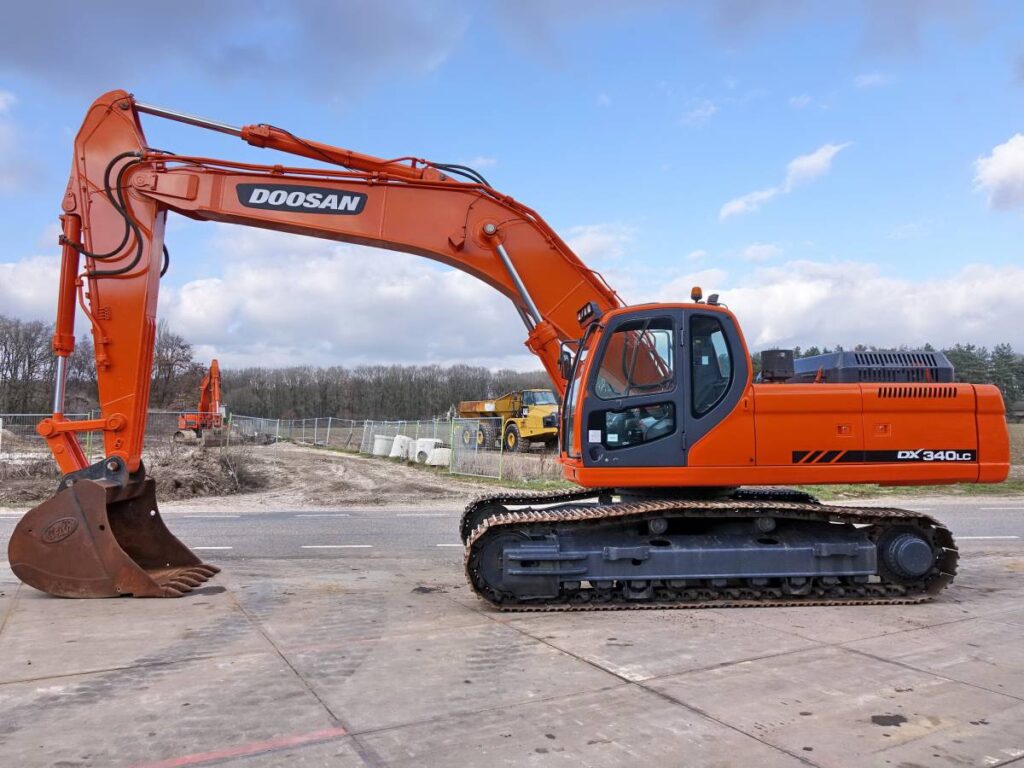

Doosan DX340LC Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | DX340LC |
| Weight | 34 t |
Equipment Overview
The Doosan DX340LC is a 34.4-tonne excavator built for mass excavation, quarry work and heavy general construction. An advanced hydraulic system with a pump capacity of 2 x 265 L/min and a counter-flow structure reduces cycle times while giving quick response to changing loads, and a robustly constructed undercarriage is designed to withstand challenging working conditions. Bucket capacity runs from 1.25 m³ up to 2.32 m³ depending on the task.
Power comes from a Doosan DL08 common-rail engine producing 191 kW at 1,900 rpm, paired with Doosan’s e-EPOS electronic control system for effective power management and fuel savings. The e-EPOS system links electronically to the engine’s ECU over a CAN communication link, keeping the engine and hydraulics continuously synchronised for consistent, efficient performance across a full shift.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Doosan DL08 |
| Power Output | 191 kW @ 1,900 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 34,400 kg |
| Digging Depth | 7,533 mm |
| Bucket Capacity | 1.25 m³ to 2.32 m³ |
| Reach | 11,168 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 11,000 mm |
| Width | 3,000 mm |
| Height | 3,000 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- Mass excavation and quarry work
- Heavy general construction
- Truck loading and material handling
- Deep trenching and foundation work
