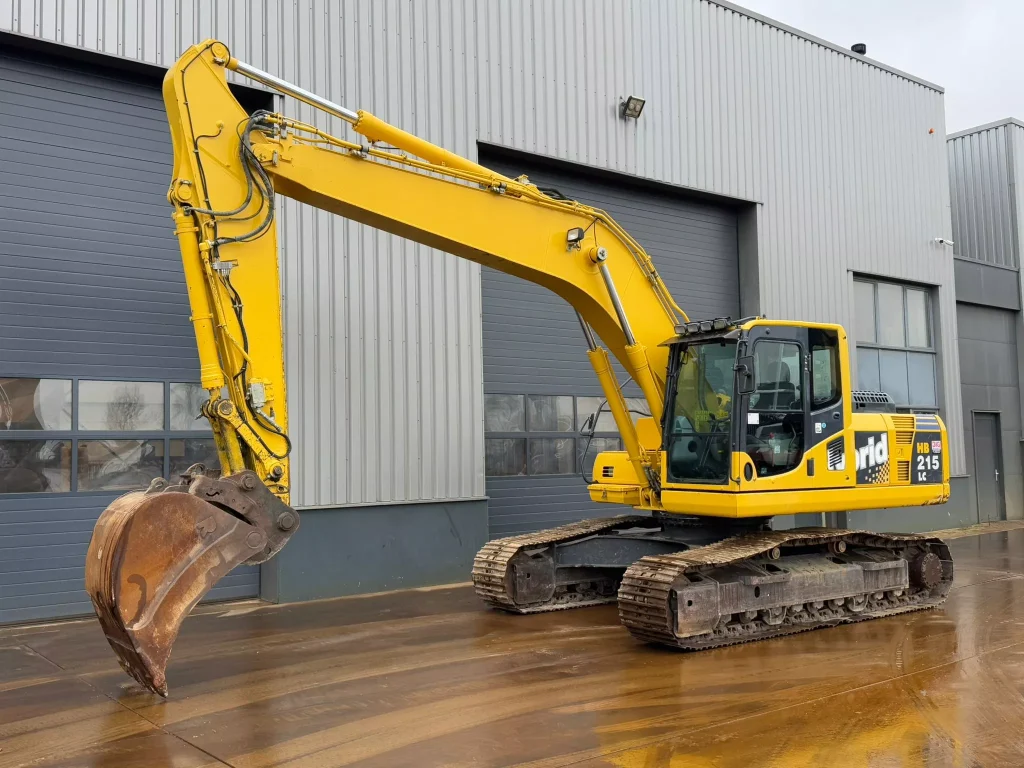

Komatsu HB215LC Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | HB215LC, HB215LC-1 |
| Weight | 23 t |
Equipment Overview
The Komatsu HB215LC is a 23.5 to 23.7-tonne hybrid excavator built around a 100% electric swing system that frees up hydraulic power for the boom, arm and bucket instead of the swing motor. An electric swing motor-generator captures and regenerates energy as the upper structure slows down, storing it in a capacitor and using it to assist the engine when it needs to accelerate, cutting fuel consumption by more than 20% compared with a non-hybrid excavator of the same class while improving cycle times.
Power comes from a Komatsu SAA4D107E diesel producing 110 kW (148 hp) at 2,000 rpm, meeting EPA Tier 4 Final emissions standards with a Selective Catalytic Reduction system. Bucket capacity ranges from 1.3 to 1.68 m³, and Komatsu’s Integrated Attachment Control system, advanced hydraulics, KOMTRAX telematics and intelligent safety features round out a machine built for high-productivity material moving with lower running costs.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu SAA4D107E, 4-cylinder diesel |
| Power Output | 110 kW (148 hp) @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final |
| Transmission | Hydrostatic with electric hybrid swing system |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 23,471 kg to 23,726 kg |
| Digging Depth | 6,095 mm |
| Bucket Capacity | 1.3 m³ to 1.68 m³ |
| Reach | 9,380 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 9,780 mm |
| Width | 2,980 mm |
| Height | 3,280 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- General construction and civil earthworks
- Truck loading and material handling
- Site development and bulk excavation
- Applications prioritising fuel efficiency and lower emissions
