EquipmentKobelco SK500LC-10 Large Excavator
Model
SK500LC-10

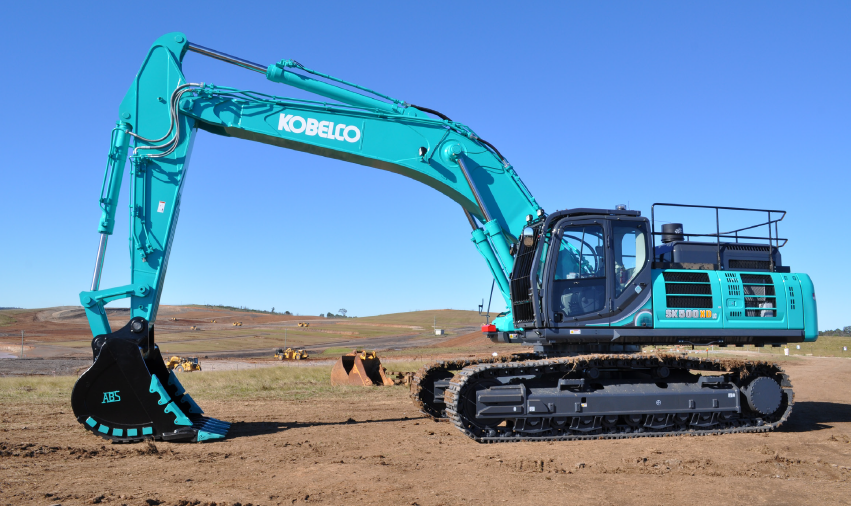

Kobelco SK500LC Large Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SK500LC |
| Weight | 51 t |
Equipment Overview
The Kobelco SK500LC is a 50.6-tonne excavator built for mass excavation and heavy production work, with an increased torque setting delivering around 11% more digging volume than the previous generation. A hydraulic regeneration system minimises energy loss during operation, and the machine’s drawbar pulling force and gradeability let it work confidently on rough or sloped terrain. Bucket digging force reaches around 244 kN under standard operation.
Power comes from a Hino diesel producing 300 kW at 1,900 rpm, meeting EU Stage V emissions standards. Two variable displacement piston pumps plus a fan pump and pilot pump deliver strong hydraulic performance, and a two-speed variable displacement piston travel motor gives the machine solid mobility despite its size. Bucket capacity is 1.9 m³, suited to high-volume material handling and continuous truck loading.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Hino diesel |
| Power Output | 300 kW @ 1,900 rpm |
| Max Torque | NA |
| Emission Standard | EU Stage V |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 50,600 kg |
| Digging Depth | 8,400 mm |
| Bucket Capacity | 1.9 m³ |
| Reach | 12,610 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 12,160 mm |
| Width | 3,350 mm |
| Height | 3,380 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- Mass excavation and heavy production work
- Quarry and mining support
- Truck loading and material handling
- Large infrastructure projects
