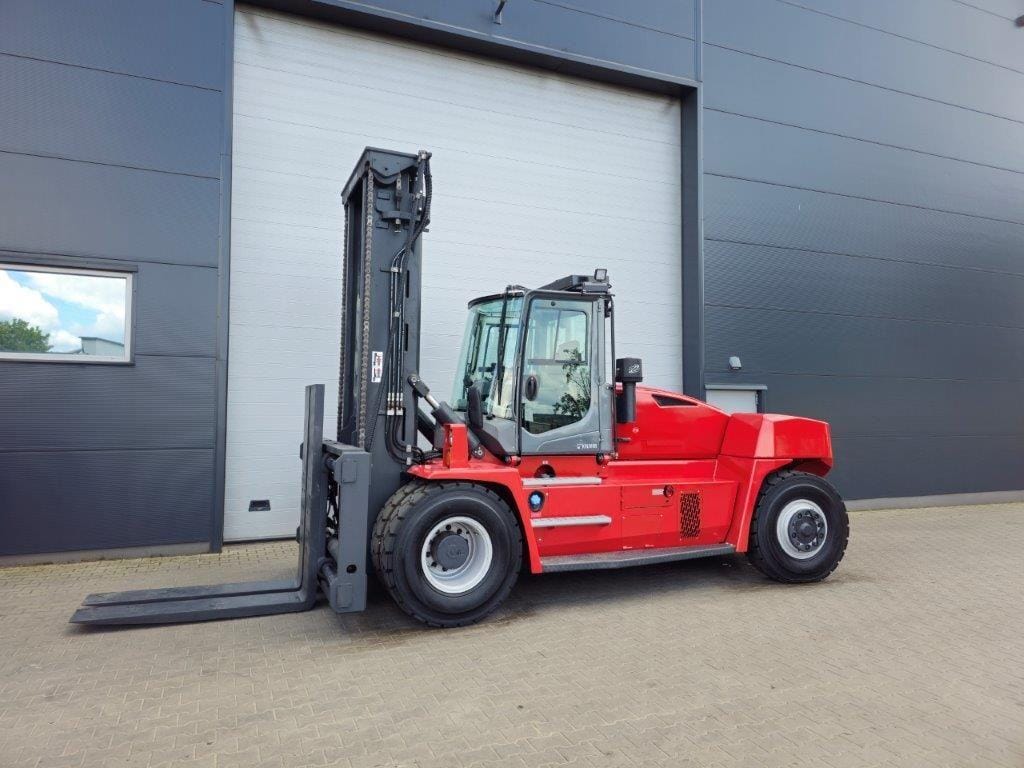

Kalmar DCG160 Counterbalance Forklift

Categories Counterbalance Forklifts, Forklifts

Information

Additional information

Make	Kalmar
Model	DCG160, DCG160-12
Weight	19t
Capacity	16t

Equipment Overview

The Kalmar DCG160 is a diesel counterbalance forklift built for heavy-duty freight handling, part of Kalmar’s DCG90-180 range alongside the DCG140 and DCG180. It has a rated capacity of 16,000 kg at a 600 mm load centre, suited to steel, timber and heavy-industrial handling in demanding outdoor environments.

Power comes from a choice of two turbocharged, intercooled six-cylinder diesel engines: a Volvo TAD761VE producing 160 kW at 2,200 rpm, or a Cummins QSB6.7 producing 164 kW at 2,200 rpm, both meeting EU Stage IIIB / EPA Tier 4i emissions standards. Drive runs through a ZF 3WG171 hydrodynamic powershift transmission with a Kessler D81 drive axle, and oil-cooled disc brakes provide consistent stopping power under heavy load.

Technical Specifications

Specification	Value
Engine / Power Source	Volvo TAD761VE or Cummins QSB6.7, turbocharged intercooled diesel
Power Output	160 kW @ 2,200 rpm (Volvo); 164 kW @ 2,200 rpm (Cummins)
Max Torque	1,180 N·m (Volvo); 945 N·m @ 1,500 rpm (Cummins)
Emission Standard	EU Stage IIIB / EPA Tier 4i
Transmission	ZF 3WG171, hydrodynamic powershift, 3-speed forward / 3-speed reverse
Drive Type	4×2, front-wheel drive, rear steer, seated operator (Kessler D81 drive axle)
Operating Weight	19,200 kg
Lift Capacity	16,000 kg @ 600 mm load centre
Mast	Standard duplex mast at 5.0 m lift height: 4,195 mm lowered / 6,695 mm extended
Tyres	12.00 x 20 / 20PR pneumatic
