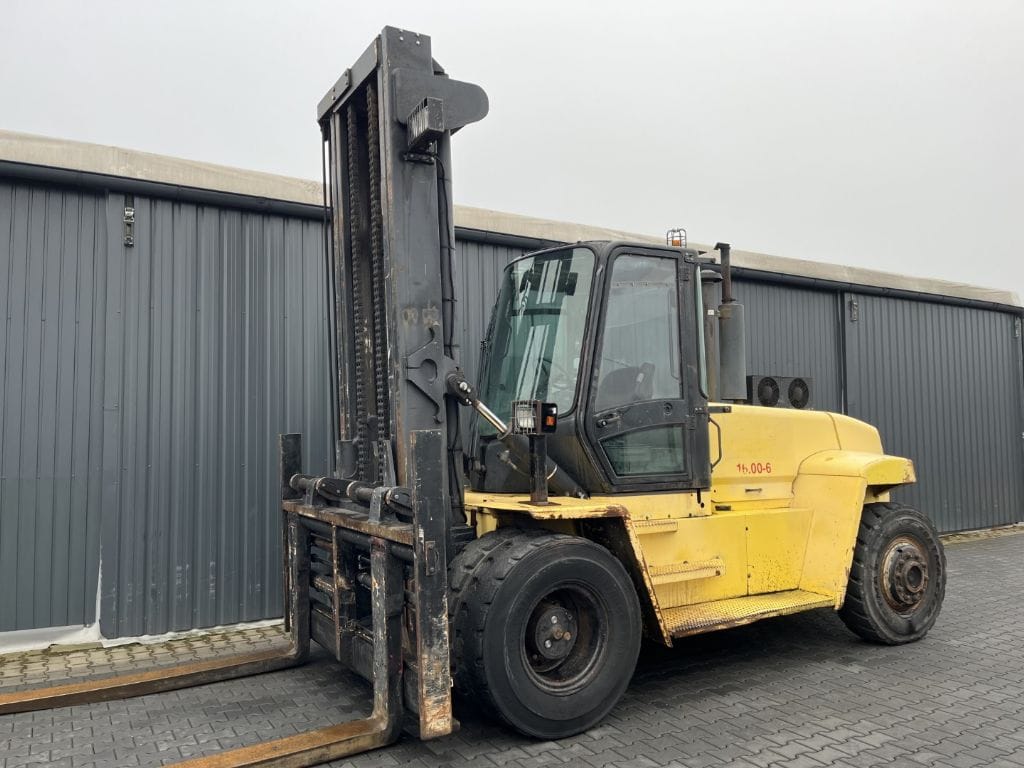

Hyster H16.00 Counterbalance Forklift
Information
Additional information
| Make | |
|---|---|
| Model | H16.00, H16.00XM-6 |
| Weight | 19t |
| Capacity | 16t |
Equipment Overview
The Hyster H16.00 is a diesel counterbalance forklift built for heavy-duty freight handling, part of Hyster’s XD heavy-duty range alongside the H13.0, H14.0 and H18.0. It has a rated capacity of 16,500 kg at a 600 mm load centre and a 3.3 m wheelbase, suited to port, steel and heavy-industrial operations.
Power comes from a Mercedes-Benz OM934 four-cylinder Stage V diesel engine producing 129 kW at 2,200 rpm, with 750 N·m of torque at 1,600 rpm, driving through a torque-converter automatic transmission. Hydraulic power steering, wet-disc drive-axle brakes and a choice of pin-type or sideshift-frame carriages support continuous heavy-duty operation.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Mercedes-Benz OM934 4-cylinder diesel, Stage V |
| Power Output | 129 kW @ 2,200 rpm |
| Max Torque | 750 N·m @ 1,600 rpm |
| Emission Standard | Stage V |
| Transmission | Torque converter, automatic (ZF / Kessler drive axle) |
| Drive Type | 4×2, front-wheel drive, rear steer, seated operator |
| Operating Weight | 19,459 kg |
| Lift Capacity | 16,000 kg @ 600 mm load centre |
| Mast | 4,193 mm lowered / 6,648 mm extended (standard 2-stage, non free-lift mast) |
| Fork Carriage | Standard pin-type carriage; forks 90 x 200 x 1,830 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,814 mm |
| Width | 2,541 mm |
| Height (overhead guard, open cab) | 3,083 mm |
| Wheelbase | 3,300 mm |
| Turning Radius | 4,573 mm |
Typical Applications
- Port and container-yard heavy freight handling
- Steel coil, plate and heavy-industrial handling
- Timber and bulk-materials yard operations
- Heavy manufacturing and rail-yard freight work
