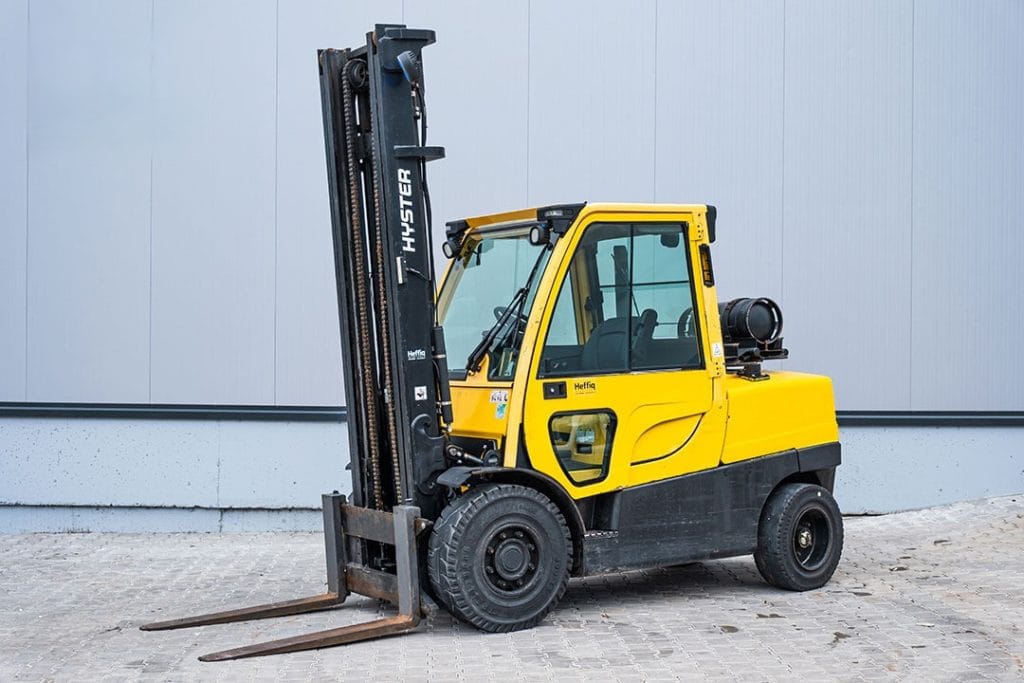

Hyster H5.0 Counterbalance Forklift
Information
Additional information
| Make | |
|---|---|
| Model | H5.0, H5.0FT |
| Weight | 7.5t |
| Capacity | 5t |
Equipment Overview
The Hyster H5.0 is a diesel counterbalance forklift built for medium-duty warehouse and yard handling, part of Hyster’s Fortens range alongside the H4.0, H4.5 and H5.5. It has a rated capacity of 5.0 t at a 600 mm load centre and a standard fork height of 2.74 m, suited to manufacturing, distribution and building-materials handling.
Power comes from a Kubota 3.6-litre four-cylinder diesel engine producing 57 kW at 2,400 rpm, with 296 N·m of torque at 1,600 rpm, paired with an electronically controlled powershift transmission available in one- or two-speed form. The truck uses a Class IVA fork carriage with 60 x 150 mm forks, and premium oil-immersed brakes for extended service life.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Kubota V3600 IDI-T 3.6L 4-cylinder diesel |
| Power Output | 57.0 kW (76.4 hp) @ 2,400 rpm |
| Max Torque | 296 N·m @ 1,600 rpm |
| Emission Standard | NA |
| Transmission | Electronic Powershift or DuraMatch, 1- or 2-speed |
| Drive Type | 4×2, front-wheel drive, rear steer, seated operator |
| Operating Weight | 7,520 kg |
| Lift Capacity | 5,000 kg @ 600 mm load centre |
| Mast | 2,215 mm lowered / 3,730 mm extended (2,740 mm lift height, 2-stage limited free lift) |
| Fork Carriage | ISO Class IVA; forks 60 x 150 x 1,200 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,500 mm |
| Width | 1,450 mm (standard tread) |
| Height (overhead guard) | 2,300 mm |
| Wheelbase | 2,100 mm |
| Turning Radius | 2,877 mm |
Typical Applications
- Manufacturing and warehouse pallet and freight handling
- Building-materials, steel and timber yard handling
- Loading dock and distribution centre operations
- Medium-to-heavy-duty outdoor yard work
