EquipmentHusqvarna LP9505 Trench Roller
Model
LP9505

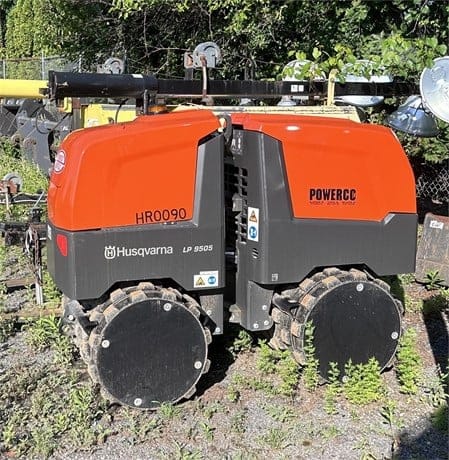

Husqvarna LP9505 Trench Roller
Information
Additional information
| Make | |
|---|---|
| Model | LP9505 |
| Weight | 1.7 t |
Equipment Overview
The Husqvarna LP9505 is an articulated trench compactor with a padded drum, delivering a smooth, compacted surface that doesn’t dig up soil when turning. It has an operating weight of 1,675 kg with a 850 mm drum width, suited to all soil types but especially cohesive materials like clay and silt thanks to its high operating weight and traction.
Power comes from a Kubota diesel engine producing 24.3 hp, with a 30-litre fuel tank giving around 8.6 hours of runtime. Radio remote control technology lets the operator choose the best position to stand for better ergonomics and safety, and high, wide drum pads increase traction on slopes, steep gradients and wet soils.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota diesel |
| Power Output | 24.3 hp |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | NA |
| Drive Type | Articulated, radio remote control |
| Operating Weight | 1,675 kg |
| Drum Width | 850 mm |
| Number of Pad Feet | NA |
| Centrifugal Force | Up to 72 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Trench and pipeline backfill compaction
- Cohesive soil compaction (clay, silt) in confined spaces
- Compaction on slopes and steep gradients
- Utility and municipal construction work
