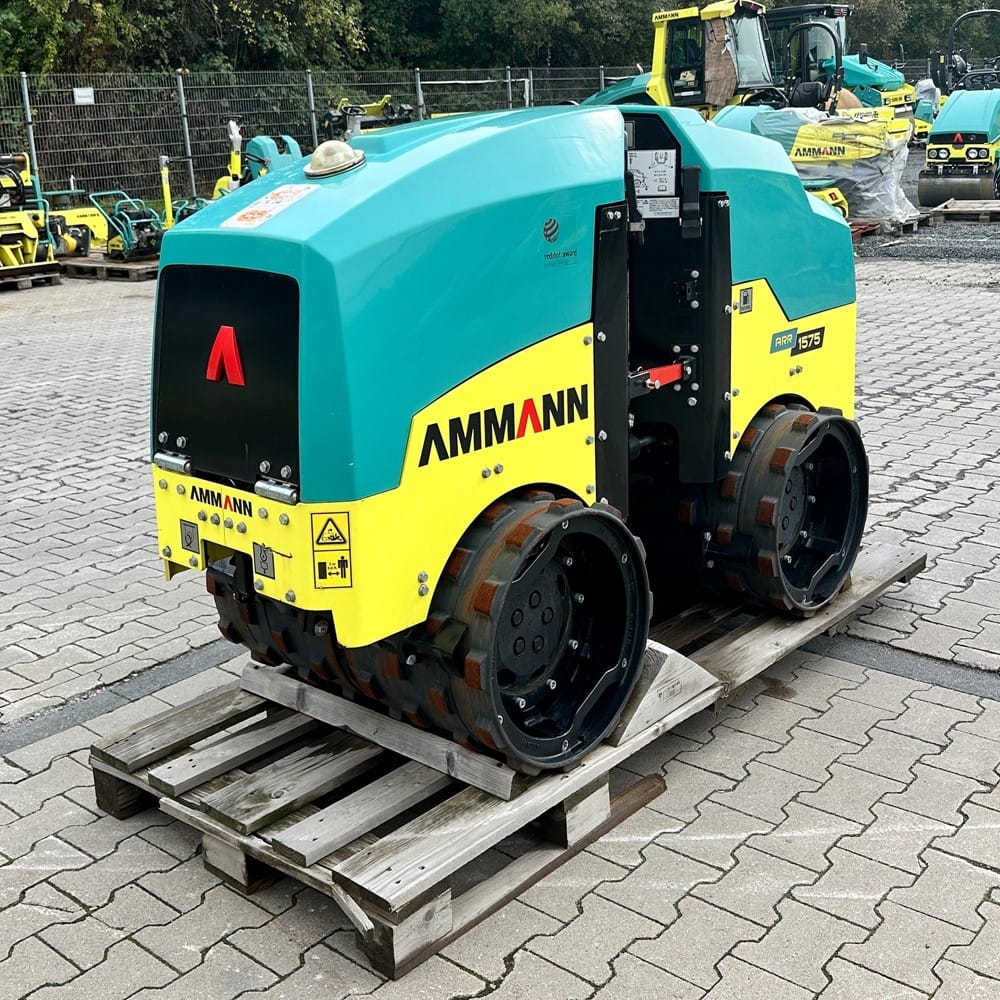

Ammann ARR1575 Trench Roller

Information

Additional information

Make	Ammann
Model	ARR1575
Weight	1.3 t

Equipment Overview

The Ammann ARR1575 is an articulated, remote-controlled trench roller with a padfoot drum, built for compacting cohesive soils in trenches and confined spaces. It has an operating weight of 1,340 kg (640 mm drum) or 1,440 kg (850 mm drum), with bolt-on drum extensions allowing the working width to be adjusted for tight or open areas.

Power comes from a Kubota D1105 diesel engine producing 20 hp (14.9 kW), meeting EU Stage V emissions, and drives a hydrostatic system with hydromechanical brakes for consistent power and smooth starts and stops. A two-stage vibratory system with adjustable eccentric weights lets the operator match compaction energy to soil conditions, and an infrared remote control system keeps the operator safely outside the trench.

Technical Specifications

Specification	Value
Engine	Kubota D1105 diesel
Power Output	20 hp (14.9 kW)
Max Torque	NA
Emission Standard	EU Stage V
Transmission	Hydrostatic
Drive Type	Articulated, two hydraulic steering cylinders
Operating Weight	1,340 kg
Drum Width	640 mm (extendable to 850 mm)
Ballast Range	1,340 – 1,440 kg
