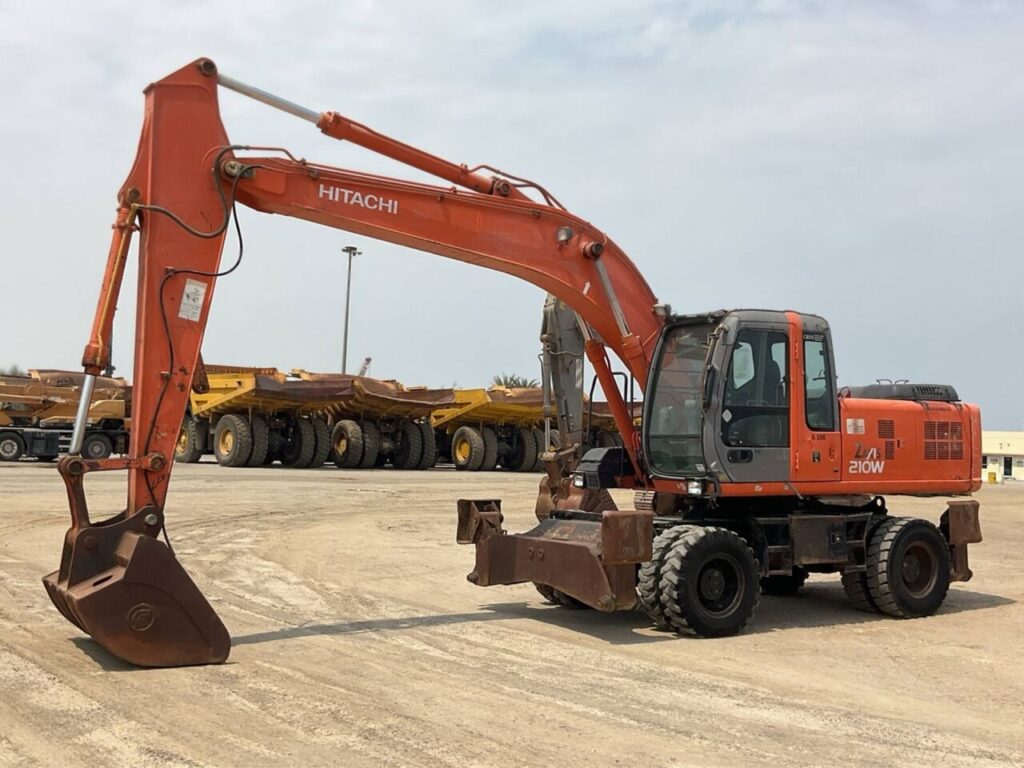

Hitachi ZX210W Wheel Excavator
Information
Additional information
| Make | |
|---|---|
| Model | ZX210W, ZX210W-3 |
| Weight | 20 t |
Equipment Overview
The Hitachi ZX210W is a 20.1 to 21.6-tonne wheeled excavator built to achieve low fuel consumption alongside a large workload, with an improved HIOS IV hydraulic system reducing hydraulic loss across the working cycle. The reinforced chassis and strengthened boom foot brackets are built to withstand rugged working environments, and the machine is easy to manoeuvre quickly and effortlessly around the job site, suiting a wide range of construction and civil applications.
Power comes from a turbocharged, intercooled diesel producing 113 kW (152 hp), driving two variable displacement axial piston pumps for swift front movements and responsive control. Bucket capacity ranges from 0.80 to 0.91 m³, giving the machine a useful balance of digging force and loading volume. Hitachi’s technological expertise, including an optimised hydraulic system and engine, helps deliver high durability and low running costs over the machine’s working life.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel, turbocharged and intercooled |
| Power Output | 113 kW (152 hp) |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2 variable displacement axial piston pumps |
| Drive Type | 4-wheel drive |
| Operating Weight | 20,100 kg to 21,600 kg |
| Digging Depth | 6,420 mm |
| Bucket Capacity | 0.80 m³ to 0.91 m³ |
| Reach | 9,950 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 9,810 mm |
| Width | 2,500 mm |
| Height | 3,110 mm |
| Track Width | NA |
| Tail Swing Radius | 2,700 mm |
Typical Applications
- Urban and municipal construction
- Utility installation and road work
- Truck loading and material handling
- General excavation on paved and improved surfaces
