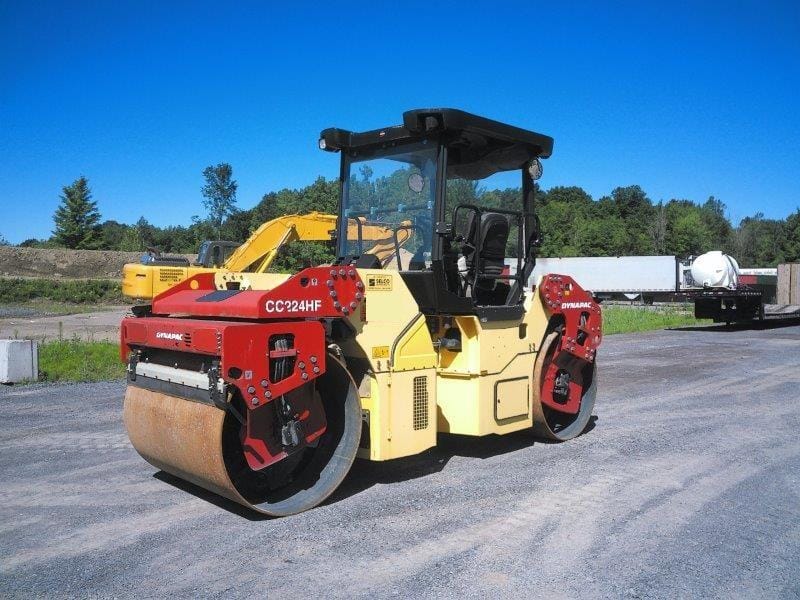

Dynapac CC224HF Double Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | CC224HF |
| Weight | 7.7 t |
Equipment Overview
The Dynapac CC224HF is a tandem double drum roller with a 1,500 mm compaction width, part of Dynapac’s CC Line built for application, operator and service efficiency. It has an operating weight of 7,700 kg (up to 9,000 kg ballasted), with high frequency vibration standard, suited to medium-to-large road construction and resurfacing projects.
Power comes from a Cummins QSB 3.3 turbo-diesel engine producing 74 kW (99 hp) at 2,200 rpm, meeting EU Stage IIIA and US EPA Tier 3 emissions. Vertical oscillation of up to ±7° keeps the drums in contact with the surface through the articulated joint, and a failsafe multidisc brake acts on both drums. The machine reaches a top speed of 12 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSB 3.3, water-cooled turbo-diesel |
| Power Output | 74 kW (99 hp) @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | EU Stage IIIA / US EPA Tier 3 |
| Transmission | Hydrostatic |
| Drive Type | Front and rear drum drive and vibration |
| Operating Weight | 7,700 kg |
| Compaction Width | 1,500 mm |
| Ballast Range | 7,700 – 9,000 kg |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,490 mm |
| Width | NA |
| Height | 2,990 mm |
| Wheelbase | NA |
| Turning Radius | 6,570 mm (outside) |
Typical Applications
- Medium-to-large road construction and resurfacing projects
- Highway and arterial road paving
- Car park and industrial pavement construction
- Base and binder course compaction ahead of surfacing
