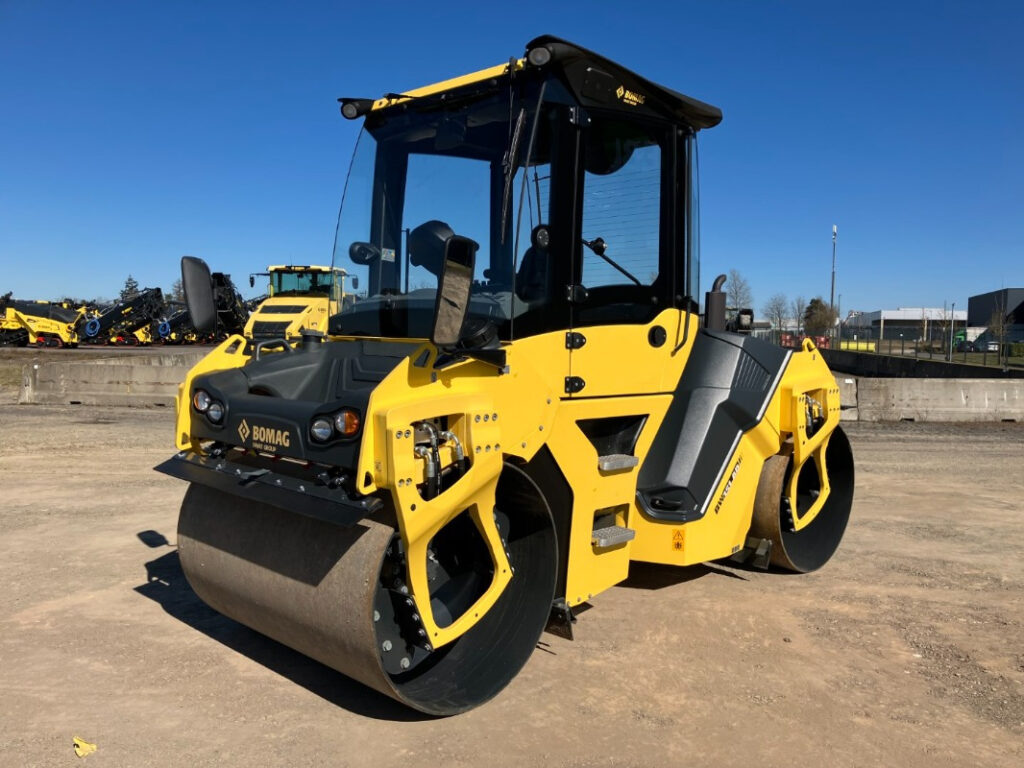

BOMAG BW151 Double Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW151 |
| Weight | 7.6 t |
Equipment Overview
The BOMAG BW151 is an articulated tandem double drum roller built for asphalt compaction, part of BOMAG’s AD-5 range of tandem rollers. It has an operating weight of 7,601 kg and a 1,500 mm drum width, suited to medium-to-large road construction and resurfacing projects.
Power comes from a Kubota V3307 CR-T turbo-diesel engine producing 74.3 hp (55.4 kW) at 2,400 rpm, meeting EU Stage IIIB and US EPA Tier 4 emissions. The drums vibrate at 45 or 50 Hz, with a static linear load of 130 lb/in on the front drum and 123.2 lb/in on the rear, and a multi-disc parking brake pairs with a hydrostatic service brake.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota V3307 CR-T, 4-cylinder turbo-diesel |
| Power Output | 74.3 hp (55.4 kW) @ 2,400 rpm |
| Max Torque | NA |
| Emission Standard | EU Stage IIIB / US EPA Tier 4 |
| Transmission | Hydrostatic |
| Drive Type | Articulated, hydrostatic drive to both drums |
| Operating Weight | 7,601 kg |
| Compaction Width | 1,500 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,399 mm |
| Width | 1,664 mm |
| Height | 3,002 mm |
| Wheelbase | 3,299 mm |
| Turning Radius | 4,389 mm (inner) |
Typical Applications
- Medium-to-large road construction and resurfacing projects
- Highway and arterial road paving
- Car park and industrial pavement construction
- Base and binder course compaction ahead of surfacing
