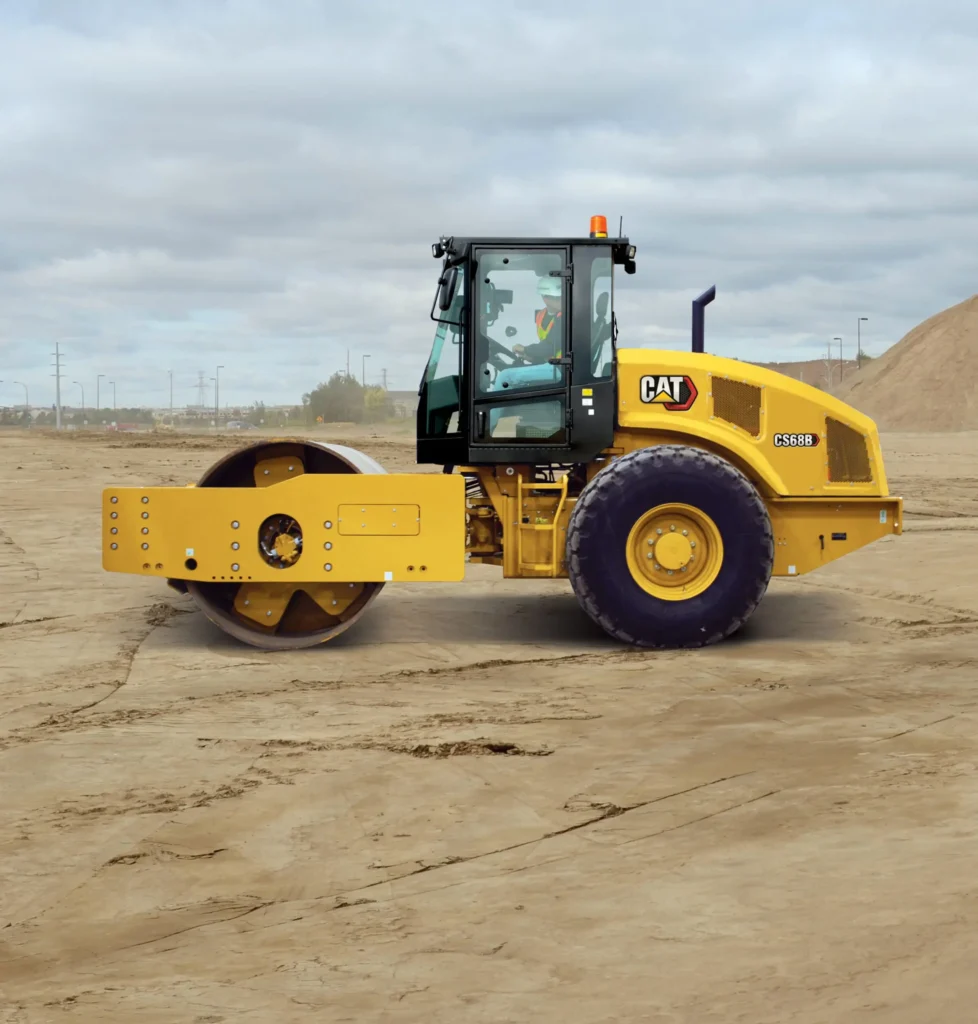

CAT CS68B Smooth Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | CS68B |
| Weight | 14 t |
Equipment Overview
The CAT CS68B is a smooth drum vibratory soil compactor with a 2,130 mm drum width, suited to road construction, aggregate bases and larger earth fills in the 14-tonne weight class. It has an operating weight of 14,325 kg.
Power comes from a Cat C4.4 engine with ACERT producing 117 kW (157 hp), meeting US EPA Tier 4 Final emissions. An exclusive dual pump propel system provides separate flow to the drum drive and rear axle for exceptional gradeability and traction, and the vibratory system runs at up to 30.5 Hz with a 2.1 mm high / 0.98 mm low nominal amplitude.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C4.4 with ACERT |
| Power Output | 117 kW (157 hp) |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 Final |
| Transmission | Two-speed hydrostatic |
| Drive Type | Dual pump propel: drum drive and rear axle |
| Operating Weight | 14,325 kg |
| Drum Width | 2,130 mm |
| Exciter Frequency | 30.5 Hz (standard) |
| Amplitude | 2.1 mm high / 0.98 mm low |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Granular soil and aggregate base compaction
- Road construction and larger earth fills
- Residential and civil construction
- Agriculture and irrigation projects
