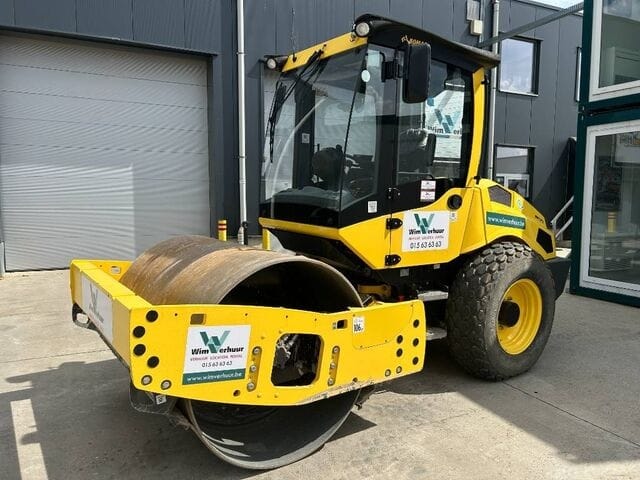

BOMAG BW216D Smooth Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW216D, BW216D-4 |
| Weight | 17 t |
| Class | Vibratory |
Equipment Overview
The BOMAG BW216D is a Smart Line single drum roller with a smooth drum, ideal for compacting sand, gravel, crushed rock and cohesive soils. It has an operating weight of 16,950 kg with a 2,130 mm working width, suited to large-scale earthwork and road construction projects.
Power comes from a Deutz engine producing 119 kW (154 hp), meeting EU Stage IIIA / US EPA Tier 3 emissions. The vibratory system delivers up to 290 kN of centrifugal force across high and low amplitude settings, and hydrostatic articulated steering with oscillation gives the roller outstanding gradeability and depth effect, even in difficult terrain. The roller reaches a top travel speed of 11.5 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Deutz diesel |
| Power Output | 119 kW (154 hp) |
| Max Torque | NA |
| Emission Standard | EU Stage IIIA / US EPA Tier 3 |
| Transmission | Hydrostatic |
| Drive Type | Oscillating articulated, hydrostatic steering |
| Operating Weight | 16,950 kg |
| Drum Width | 2,130 mm |
| Centrifugal Force | Up to 290 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,215 mm |
| Width | 2,300 mm |
| Height | 3,053 mm |
| Wheelbase | 3,113 mm |
| Turning Radius | 3,874 mm (inner) |
Typical Applications
- Sand, gravel and crushed rock compaction
- Large-scale road, dam and landfill construction
- Cohesive soil compaction
- Large earthwork projects requiring high gradeability
