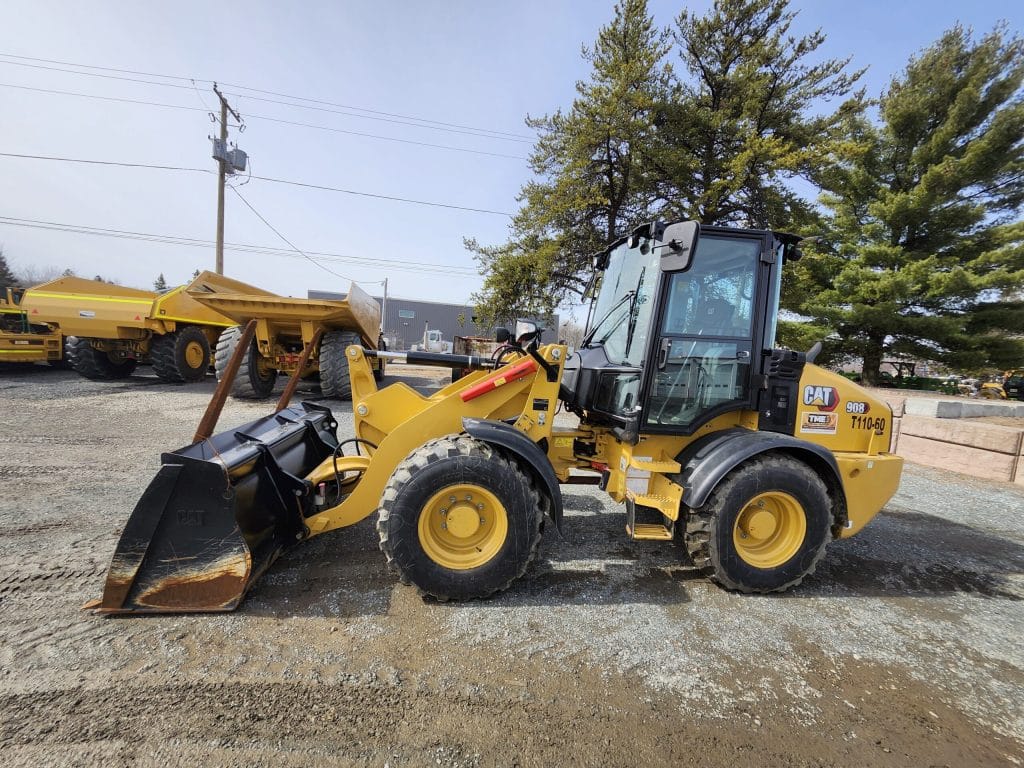

CAT 908 Wheel Loader

Information

Additional information

Make	Caterpillar
Model	908, 908H
Weight	6.4 t
Bucket	1.1 m3

Equipment Overview

The Cat 908 is a compact wheel loader built for agriculture, general construction, industrial, and landscaping work, the entry point in Caterpillar’s compact wheel loader range. It delivers 55 kW (74 hp) of gross power and a 6,365 kg operating weight, suited to Ag Handler and Waste Handler configurations alongside standard general-purpose work.

Power comes from a Cat C3.3B DIT engine meeting Tier 4 Final/Stage IIIB emission standards, driving a hydrostatic transmission with “shift on the go” 100% differential lock on both axles as standard. The Cat Optimized Z-bar loader linkage combines traditional Z-bar digging efficiency with tool carrier versatility, and an electrohydraulic system with an all-in-one joystick keeps the operator focused on the work.

Technical Specifications

Specification	Value
Engine	Cat C3.3B DIT, turbo diesel
Power Output	55 kW (74 hp) gross; 51 kW (68 hp) net
Max Torque	NA
Emission Standard	Tier 4 Final; EU Stage IIIB
Transmission	Hydrostatic, 2-speed (35 km/h high-speed option)
Drive Type	4WD, 100% differential lock both axles
Operating Weight	6,365 kg
Bucket Capacity	1.1 m³ (range 0.9–1.5 m³)
Breakout Force	6,221 kg
Tipping Load (straight)	4,940 kg
Max Travel Speed	20 km/h standard (35 km/h optional)
