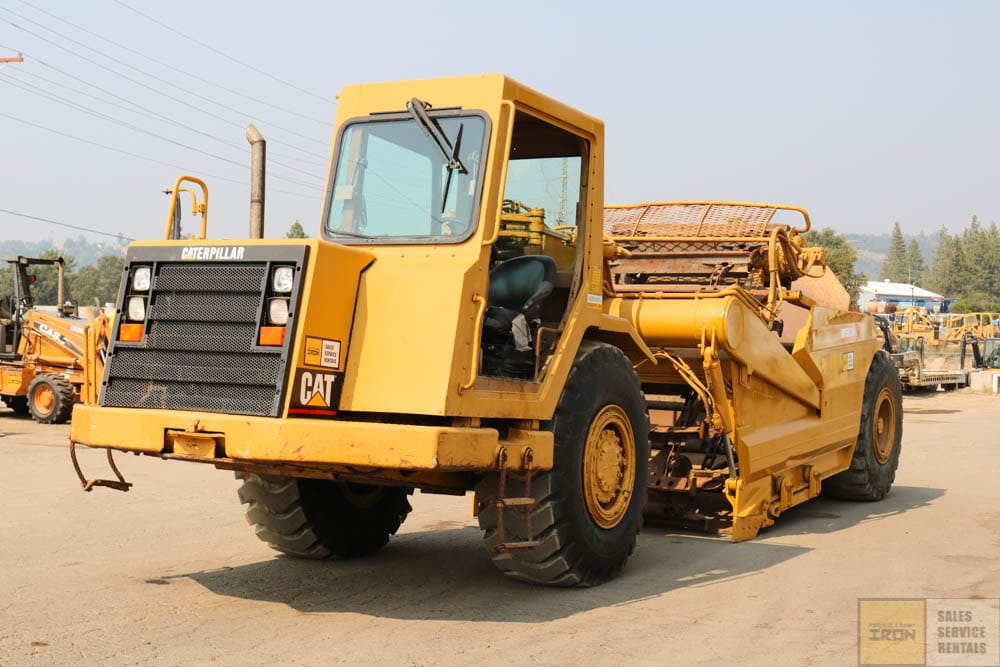

CAT 613 Elevating Scraper

Information

Additional information

Make	Caterpillar
Model	613
Weight	17 t

Equipment Overview

The CAT 613 is an elevating scraper built for self-loading, fine-grade earthwork, part of Caterpillar’s wheel tractor-scraper line alongside larger models such as the 615 and 623. It carries a heaped capacity of 8.4 cubic metres and an empty operating weight of close to 17 tonnes, sized for smaller subdivision development, landscaping, sports-field construction and finish-grading jobs where a compact self-loading scraper does the work of a dozer-and-loader combination in a single pass.

Power comes from a Cat C6.6 ATAAC engine rated at 135 kW (181 hp) net, driving a six-speed planetary powershift transmission through a torque converter carried over from Caterpillar’s D6N dozer for extra rimpull in the cut. A hydraulically driven elevator loads and unloads the bowl, and only the tractor’s rear wheels are driven; the scraper axle trails behind on its own wheels.

Technical Specifications

Specification	Value
Engine	Cat C6.6 ATAAC
Power Output	135 kW (181 hp) net
Max Torque	NA
Emission Standard	NA
Transmission	Planetary powershift, 6 forward / 1 reverse
Drive Type	Single power unit; tractor wheels driven, scraper axle trailing
Operating Weight (Empty)	16,887 kg
Rated Load	11,975 kg
Scraper Capacity – Heaped	8.4 m³
Scraper Capacity – Struck	6.8 m³
Cutting Width	2,430 mm
Maximum Depth of Cut	160 mm
Maximum Depth of Spread	571 mm
Number of Elevator Flights	15
Fuel Tank Capacity	359.6 L
