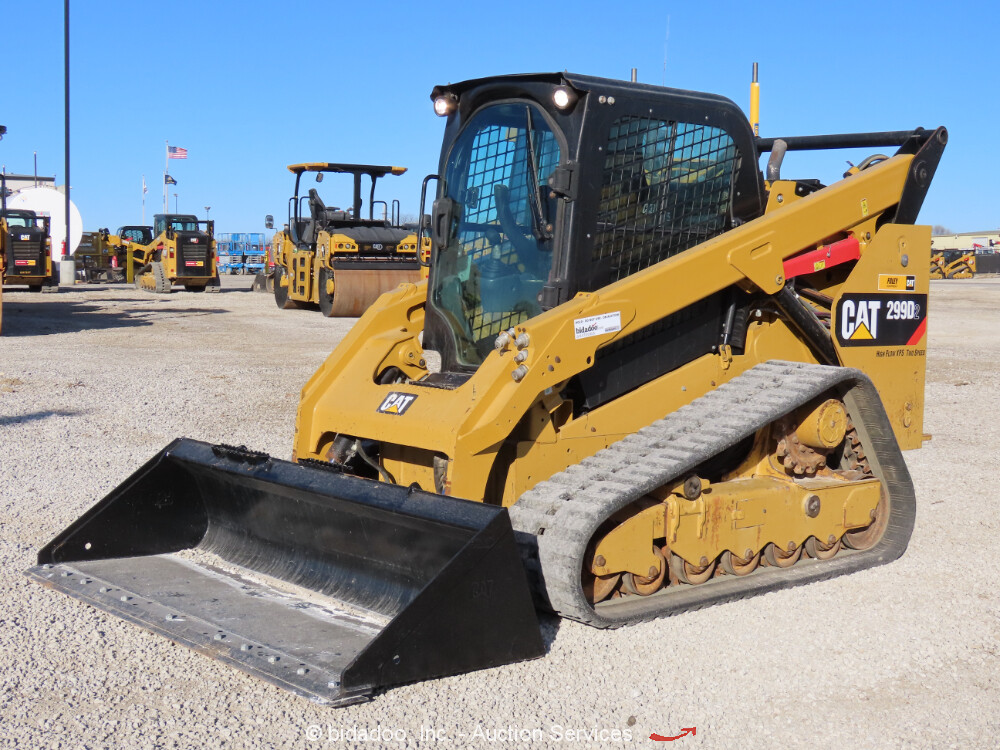

CAT 299D Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | 299D, 299D3 |
| Weight | 4.9 t |
| Capacity | 1.5 t |
| Power | 98 hp |
Equipment Overview
The Cat 299D is a compact track loader built for heavy material handling and truck loading work, the flagship vertical-lift model in Caterpillar’s D Series compact track loader range. It delivers 73 kW (98 hp) of gross power and a 1,476 kg rated operating capacity, suited to demanding attachment work needing more muscle than the smaller D Series models.
Power comes from a Cat C3.8 turbocharged diesel engine delivering 334 N·m of peak torque, driving a suspended track undercarriage through a two-speed hydrostatic transmission. The vertical-lift boom geometry gives extended reach and lift height for quick truck loading, and an 86 L/min hydraulic circuit powers Cat’s full range of work tools.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C3.8, turbo diesel, 3.8 L |
| Power Output | 73 kW (98 hp) gross; 71 kW (95 hp) net |
| Max Torque | 334 N·m @ 1,500 rpm |
| Emission Standard | NA |
| Drive Type | 2-speed hydrostatic, suspended track undercarriage |
| Operating Weight | 4,862 kg |
| Rated Operating Capacity (35%) | 1,476 kg |
| Tipping Load | 4,218 kg |
| Auxiliary Hydraulic Flow | 86 L/min |
| Max Travel Speed | 8.4 km/h (13.5 km/h with 2-speed) |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | 2,104 mm (top of cab) |
| Wheelbase | 1,767 mm (track on ground) |
| Turning Radius | NA |
Typical Applications
- Heavy truck loading and material handling
- Large construction and earthworks sites
- Demanding attachment work
- Stockpile and pallet handling
