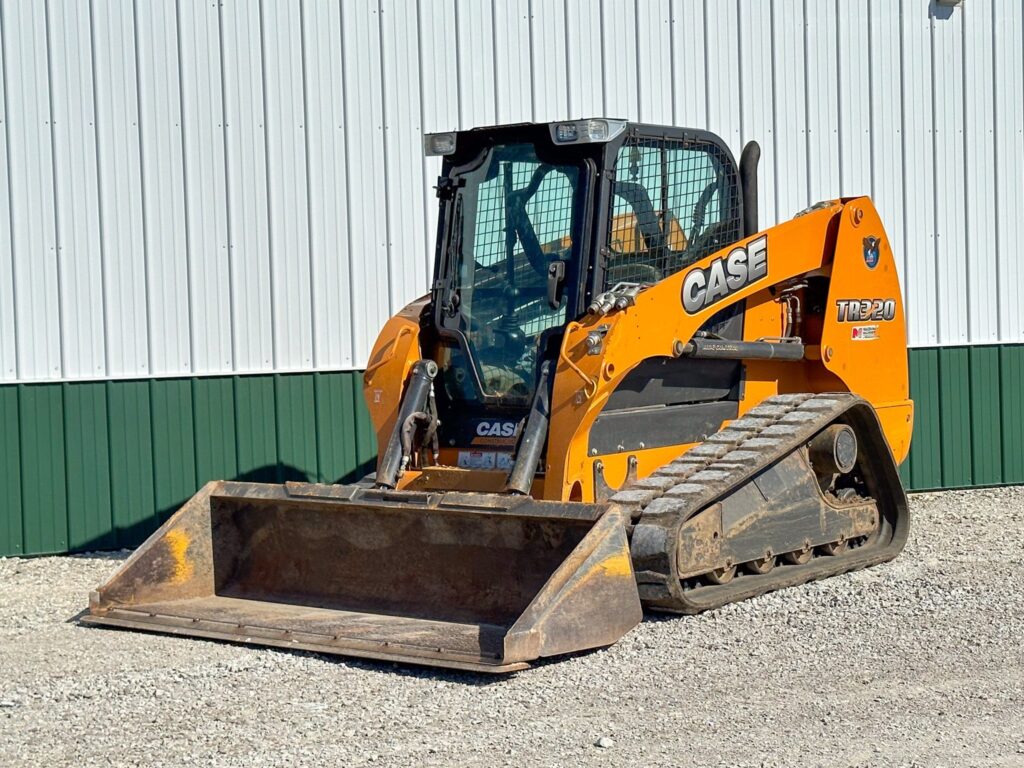

CASE TR320 Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | TR320 |
| Weight | 4.4 t |
| Capacity | 1 t |
| Power | 90 hp |
Equipment Overview
The CASE TR320 is a compact track loader built for construction and material handling work, a discontinued model superseded by the TR310B in CASE’s current B Series compact track loader range. It delivers 90 hp (67 kW) from an FPT diesel engine and a 1,018 kg rated operating capacity, suited to heavier earthmoving and attachment work than CASE’s smaller CTLs.
Power comes from an FPT F5C E5454 turbocharged diesel engine driving a radial-lift boom through a 2-speed hydrostatic transmission and planetary reduction. A dozer-style undercarriage with 450 mm rubber tracks gives strong tractive force on steep slopes, and an 85 L/min open-centre hydraulic circuit powers attachments at 207 bar.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | FPT F5C E5454, 4-cylinder turbo diesel, 3.2 L |
| Power Output | 90 hp (67 kW) |
| Max Torque | NA |
| Emission Standard | Tier 4 |
| Drive Type | 2-speed hydrostatic (track) |
| Operating Weight | 4,355 kg |
| Rated Operating Capacity (35%) | 1,018 kg |
| Tipping Load | 2,900 kg |
| Auxiliary Hydraulic Flow | 85 L/min (207 bar) |
| Max Travel Speed | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,610 mm (bucket on ground) |
| Width | 1,490 mm (without bucket) |
| Height | 2,040 mm (top of cab) |
| Wheelbase | 1,640 mm (track on ground) |
| Turning Radius | NA |
Typical Applications
- Heavy earthmoving and site grading
- Palletised material handling
- Slope work requiring strong tractive force
- Attachment-driven construction work
