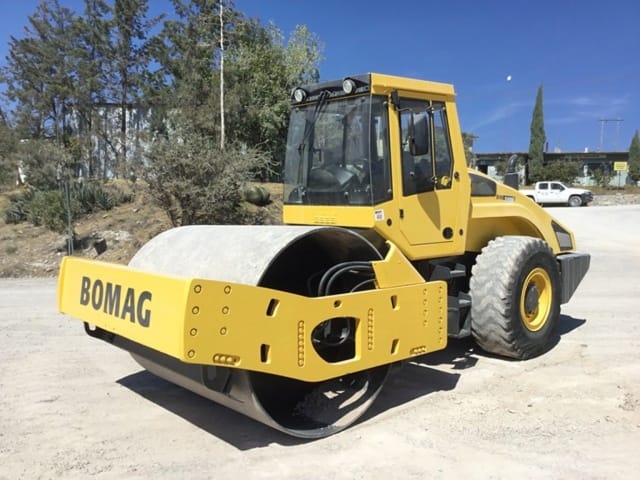

BOMAG BW219D Smooth Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW219D, BW219D-4, BW219D-5 |
| Weight | 19 t |
Equipment Overview
The BOMAG BW219D is a Smart Line single drum roller with a smooth drum, ideal for compacting sand, gravel, crushed rock and weakly cohesive soils. It has a gross weight of 19,400 kg with a 2,130 mm working width, suited to heavy compaction work on large-scale road, airport and dam construction projects.
Power comes from a Deutz TCD 6.1 L6 engine producing 150 kW, meeting EU Stage V / US EPA Tier 4 Final emissions. Hydrostatic articulated steering with oscillation and high-torque drives give the roller outstanding gradeability, even in difficult terrain, and a maintenance-free articulated joint reduces downtime.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Deutz TCD 6.1 L6, 6-cylinder liquid-cooled diesel |
| Power Output | 150 kW |
| Max Torque | NA |
| Emission Standard | EU Stage V / US EPA Tier 4 Final |
| Transmission | Hydrostatic |
| Drive Type | Oscillating articulated, hydrostatic steering |
| Operating Weight | 19,400 kg |
| Drum Width | 2,130 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,500 mm |
| Width | 2,300 mm |
| Height | 3,060 mm |
| Wheelbase | 3,255 mm |
| Turning Radius | 4,120 mm (inner) |
Typical Applications
- Sand, gravel and crushed rock compaction
- Large-scale road, airport and dam construction
- Heavy compaction of thick fill layers
- Land reclamation projects
