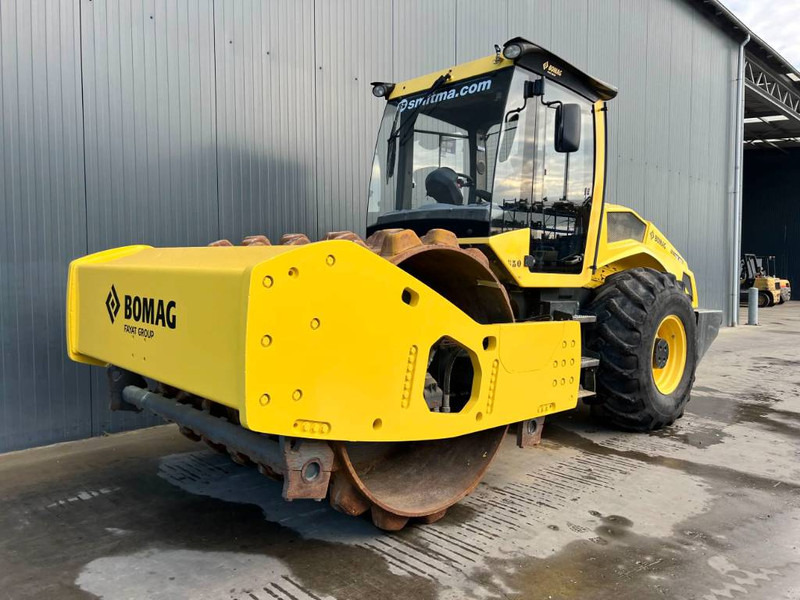

BOMAG BW216PD Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW216PD, BW216PD-4 |
| Weight | 15t |
Equipment Overview
The BOMAG BW216PD is a single drum padfoot roller built for compacting cohesive and high water content soils, with a 2,130 mm working width fitted with a padfoot segment of 150 pads. It has an operating weight of 15,400 kg, ballasting up to 16,070 kg, suited to heavy earthworks on large-scale projects.
Power comes from a Deutz TCD 2013 L04 engine producing 119 kW (162 hp) at 2,200 rpm, meeting EU Stage IIIA / US EPA Tier 3 emissions. Drive is hydrostatic with oscillating articulated steering at ±35°/±12°, and the exciter system runs at 30 or 36 Hz with up to 275 kN of centrifugal force. The roller reaches a top speed of 11 km/h across 4 gears.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Deutz TCD 2013 L04, 4-cylinder water-cooled diesel |
| Power Output | 119 kW (162 hp) @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | EU Stage IIIA / US EPA Tier 3 |
| Transmission | Hydrostatic |
| Drive Type | Oscillating articulated, hydrostatic steering |
| Operating Weight | 15,400 kg |
| Drum Width | 2,130 mm |
| Number of Pad Feet | 150 |
| Exciter Frequency | 30 / 36 Hz |
| Centrifugal Force | Up to 275 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,215 mm |
| Width | 2,300 mm |
| Height | 3,053 mm |
| Wheelbase | 3,113 mm |
| Turning Radius | 3,874 mm (inner) |
Typical Applications
- Cohesive and high water content soil compaction
- Heavy earthworks on large-scale projects
- Road, airport and dam construction
- Land reclamation and thick fill layer compaction
