EquipmentBOMAG BW213PD-4 Padfoot Roller
Model
BW213PD-4

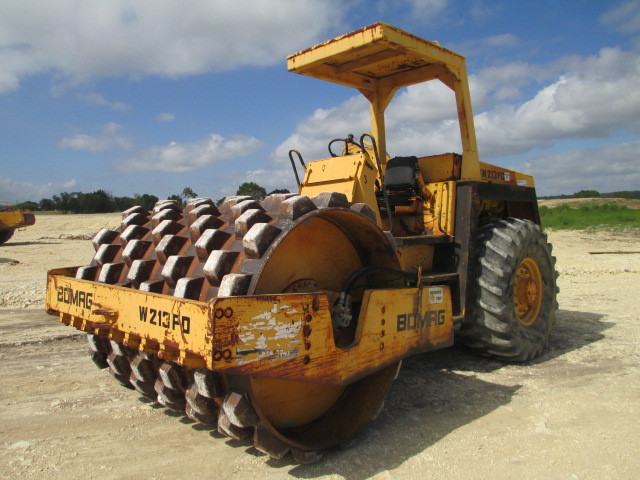

BOMAG BW213PD Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW213PD, BW213PD-4, BW213PDH-5 |
| Weight | 14 t |
Equipment Overview
The BOMAG BW213PD is a single drum padfoot roller built for compacting cohesive and high water content soils, with a 2,131 mm drum width fitted with a padfoot segment of 150 pads. It has an operating weight of 13,830 kg, suited to heavy earthworks on road, airport and dam construction sites.
Power comes from a Deutz TCD 4.1 engine producing 154.2 hp at 2,000 rpm, meeting US EPA Tier 4 and EU Stage IV emissions. Drive is hydrostatic with oscillating articulated steering at ±35°/±12°, and the exciter system runs at 30 or 34 Hz with up to 285 kN of centrifugal force. The roller reaches a top speed of 12 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Deutz TCD 4.1, 4-cylinder liquid-cooled diesel |
| Power Output | 154.2 hp @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 / EU Stage IV |
| Transmission | Hydrostatic |
| Drive Type | Oscillating articulated, hydrostatic steering |
| Operating Weight | 13,830 kg |
| Drum Width | 2,131 mm |
| Number of Pad Feet | 150 |
| Exciter Frequency | 30 / 34 Hz |
| Centrifugal Force | Up to 285 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5,870 mm |
| Width | 2,134 mm |
| Height | 2,990 mm |
| Wheelbase | 2,271 mm |
| Turning Radius | NA |
Typical Applications
- Cohesive and high water content soil compaction
- Heavy earthworks on large-scale projects
- Road, airport and dam construction
- Land reclamation and thick fill layer compaction
