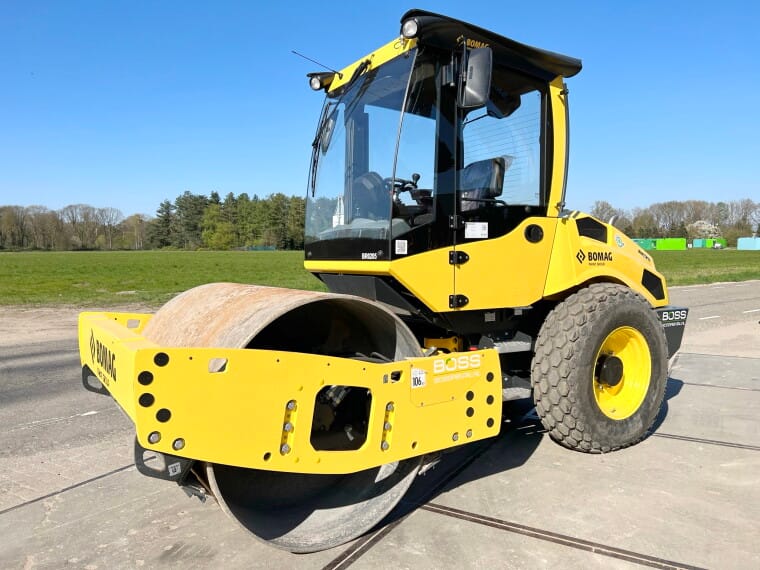

BOMAG BW177D Smooth Drum Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW177D, BW177D-4, BW177DH-4, BW177DH-5 |
| Weight | 6.6 t |
| Class | Vibratory |
Equipment Overview
The BOMAG BW177D is a single drum roller with a smooth drum, designed for water-bound materials, sand, gravel and sub-bases. It has an operating weight of 6,600 kg with a 1,687 mm drum width, suited to medium-duty earthworks and subbase work on road construction and civil engineering sites.
Power comes from a Kubota V3307 CR-T engine producing 74.3 hp at 2,400 rpm, meeting US EPA Tier 4 / EU Stage IV emissions. The vibratory system runs at 29 or 32 Hz with up to 74 kN of centrifugal force, and hydrostatic oscillating articulated steering keeps the drum in contact with the ground on uneven terrain. The roller carries a 110-litre fuel tank and reaches a top speed of 10.5 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota V3307 CR-T, 4-cylinder water-cooled diesel |
| Power Output | 74.3 hp @ 2,400 rpm |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 / EU Stage IV |
| Transmission | Hydrostatic |
| Drive Type | Oscillating articulated, hydrostatic steering |
| Operating Weight | 6,600 kg |
| Drum Width | 1,687 mm |
| Exciter Frequency | 29 / 32 Hz |
| Centrifugal Force | Up to 74 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,364 mm |
| Width | 1,689 mm |
| Height | 2,801 mm |
| Wheelbase | 2,350 mm |
| Turning Radius | NA |
Typical Applications
- Water-bound material, sand and gravel compaction
- Medium-duty earthworks and subbase work
- Road construction and civil engineering sites
- Landfill and embankment compaction
