EquipmentXCMG XP265S Multi Tyre Roller
Model
XP265S

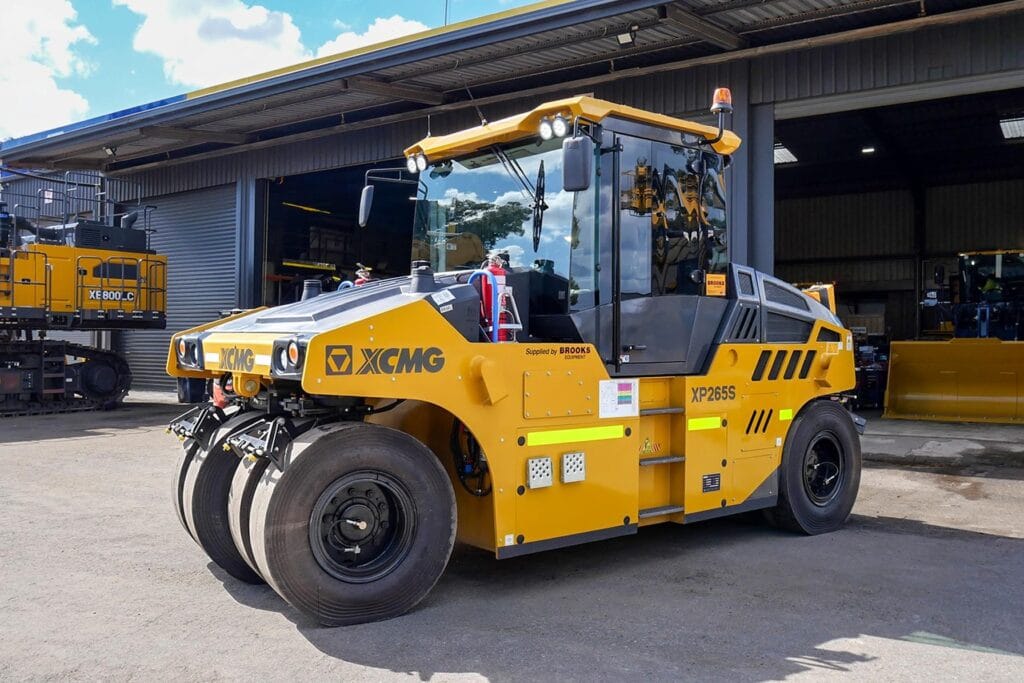

XCMG XP265S Multi Tyre Roller
Information
Additional information
| Make | |
|---|---|
| Model | XP265S |
| Weight | 26 t |
Similar Equipment
Equipment Overview
The XCMG XP265S is a large-tonnage pneumatic tyre roller built for compacting asphalt pavement, foundation layers and filling engineering, running 4 front and 5 rear 13/80-20 tyres across a 2,360 mm working width. It has a maximum operating weight of 26,300 kg, suited to high-grade highway, airport, port and industrial construction sites.
Power comes from an SC7H180.1G3 water-cooled, supercharged 6-cylinder diesel engine producing 132 kW at 2,000 rpm, meeting EU Stage III emissions. Drive runs through a hydraulic transmission to front-wheel hydraulic steering, and a tyre pressure monitoring and control system offers 7 selectable pressure settings for accurate, automatic compaction control. The roller reaches a top speed of 16 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | SC7H180.1G3, water-cooled supercharged 6-cylinder diesel |
| Power Output | 132 kW @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | EU Stage III |
| Transmission | Hydraulic |
| Drive Type | Front-wheel hydraulic steering |
| Operating Weight | 26,300 kg (maximum) |
| Compaction Width | 2,360 mm |
| Tyre Configuration | 4 front, 5 rear, 13/80-20-16PR |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5,100 mm |
| Width | 2,360 mm |
| Height | 3,200 mm |
| Wheelbase | 4,000 mm |
| Turning Radius | 7,900 mm (minimum outside) |
Typical Applications
- High-grade highway and airport construction
- Port and industrial construction sites
- Dam and filling engineering
- Asphalt pavement and foundation layer compaction
