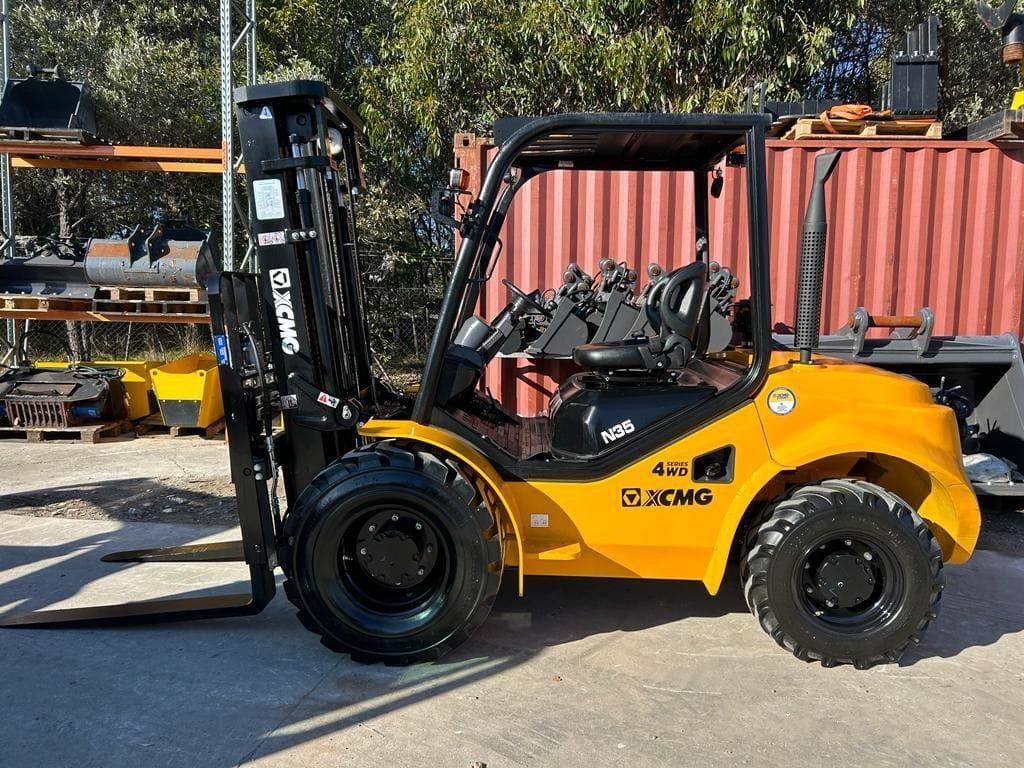

XCMG FD35T Rough Terrain Forklift

Categories Forklifts, Rough Terrain Forklifts

Information

Additional information

Make	XCMG
Model	FD35T, FD35T-JEN
Weight	4.6 t
Capacity	3.5 t

Equipment Overview

The XCMG FD35T is a diesel forklift built for outdoor freight handling in tougher site conditions, part of XCMG’s N Series 1.5-3.5 tonne range alongside the FD30T. It has a rated capacity of 3,500 kg at a 600 mm load centre and a standard 2-stage mast lifting from 3.0 m to 6.0 m, suited to construction sites, yards and general outdoor freight work.

The engine is available in several diesel options depending on configuration, including Xinchai, Isuzu and Mitsubishi units, paired with a standard powershift transmission and pneumatic tyres suited to unsealed and semi-formed surfaces. Forks measure 125 mm wide by 1,070 mm long, and the truck is built on a one-piece suspension frame with a wide-view mast for improved operator sightlines.

Technical Specifications

Specification	Value
Engine / Power Source	Diesel (options include Xinchai C490BPG, Isuzu C240 or Mitsubishi S4S, depending on configuration)
Power Output	35.3-36.8 kW depending on engine option (Xinchai 36.8 kW @ 2,650 rpm; Isuzu 35.4 kW @ 2,500 rpm; Mitsubishi 35.3 kW @ 2,250 rpm)
Max Torque	139-177 N·m depending on engine option (Xinchai 156 N·m @ 1,800 rpm; Isuzu 139 N·m @ 1,800 rpm; Mitsubishi 177 N·m @ 1,700 rpm)
Emission Standard	EU III
Transmission	Standard powershift
Drive Type	4×2, seated operator
Operating Weight	4,640 kg
Lift Capacity	3,500 kg @ 600 mm load centre
Mast	2-stage or 3-stage full free-lift, 3.0-6.0 m lift height (options to 7.0 m)
Fork Length	1,070 mm x 125 mm
