EquipmentSANY SSR180C-8 Padfoot Roller
Model
SSR180C-8

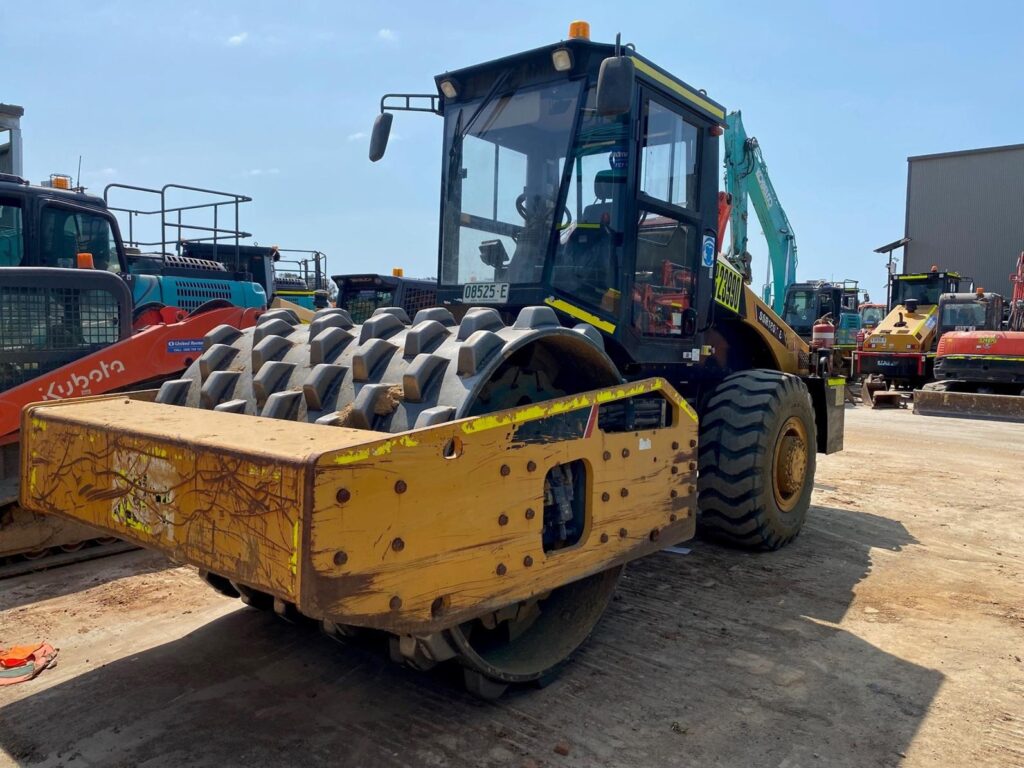

SANY SSR180C Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | SSR180C, SSR180C-8 |
| Weight | 18 t |
Equipment Overview
The SANY SSR180C is a single drum roller built for road construction and maintenance, with a padfoot shell kit available for cohesive soil compaction. It has an operating weight of 18,000 kg, delivering strong compaction performance with a fully hydraulic double-drive system suited to complex construction conditions.
Power comes from a diesel engine producing 133 kW (rated power), driving a vibratory system with up to 380 kN of centrifugal force. Water-wheel type lubrication on the vibratory bearing extends bearing life to over 5,000 hours, and a three-stage hydraulic filtration system supports reliable operation in demanding conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel |
| Power Output | 133 kW |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Fully hydraulic |
| Drive Type | Double-drive |
| Operating Weight | 18,000 kg |
| Centrifugal Force | Up to 380 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,620 mm |
| Width | 2,270 mm |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Road construction and maintenance projects
- Cohesive soil compaction with the padfoot shell kit fitted
- Base and subbase compaction on larger sites
- Complex construction conditions requiring reliable double-drive traction
