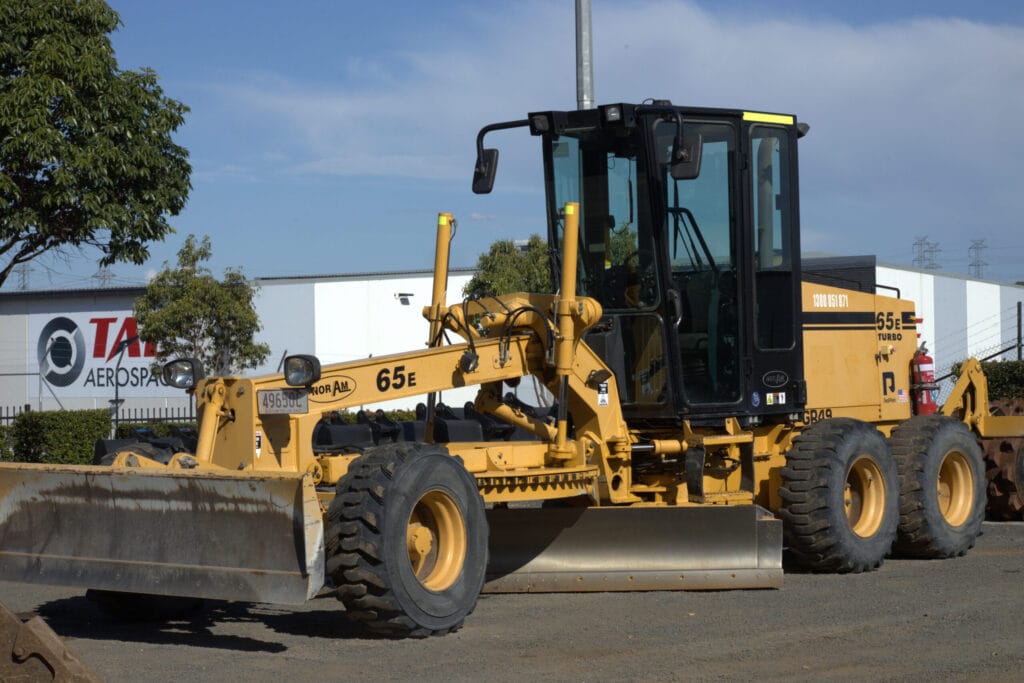

Noram 65E Motor Grader
Information
Additional information
| Make | |
|---|---|
| Model | 65E |
| Weight | 8t |
| Blade | 10ft |
Equipment Overview
The Noram 65E is a compact motor grader built for grading in tighter spaces, packing the features of a larger machine into a smaller frame. It runs a 10 ft moldboard as standard, with a 12 ft option, weighs around 7,615 kg, and produces up to 85 kW, suited to rural roads, small-to-medium civil sites and quarry access tracks where a full-size grader is overkill.
Power comes from a Cummins turbo-diesel engine driving a full power shift transmission with torque converter and six forward, two reverse gears. An articulated frame, torque-proportioning rear axle and wheel lean give it manoeuvrability closer to a small loader than a road grader, while a 53 in gear-driven circle with 360-degree blade rotation keeps blade positioning flexible for ditching and bank work.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins turbo diesel |
| Power Output | 82-85 kW |
| Emission Standard | Tier 3 equivalent |
| Transmission | Full power shift with torque converter, 6F/2R |
| Drive Type | Tandem rear-wheel drive, articulated frame |
| Operating Weight | 7,615 kg |
| Moldboard Width | 3.0 m (10 ft) standard, 3.7 m (12 ft) optional |
| Circle | 53 in gear-driven, 360-degree blade rotation |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,569 mm |
| Width | 2,337 mm |
| Height | 2,997 mm |
Typical Applications
- Rural and shire road maintenance
- Quarry and mine access road upkeep
- Small-to-medium civil and subdivision sites
- Driveway and building pad grading
- Drainage and table drain maintenance
